HDPE Electrofusion Reducer

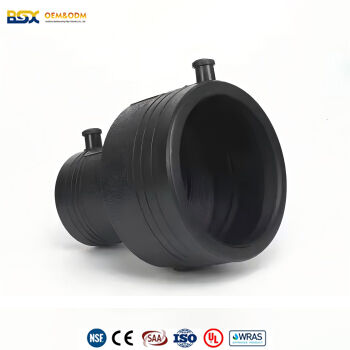

BSX HDPE Electrofusion Reducer
Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN50-800mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR17, SDR26
Certificates: CE, ISO, WRAS, UL
Color: Black, colors can be customized
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry The HDPE Electrofusion Reducer is a specialized fitting used to connect two HDPE pipes of different diameters in a straight line. It utilizes integrated electrofusion technology with precision-embedded heating coils to create a high-strength, leak-proof transition between the larger and smaller pipe sizes, ensuring smooth flow and structural integrity.
Technical Features
Dual-Size Precision: Engineered with precise internal diameters for both ends to ensure a perfect fit with standard HDPE pipe sizes.
High-Quality Heating Elements: Features high-grade copper or brass heating coils that provide consistent and balanced thermal distribution during the fusion process.
Traceability Integration: Equipped with a universal barcode for automatic welding parameter synchronization, including voltage, fusion time, and cooling periods.
Product Advantages
Optimized Flow Transition: The tapered internal geometry is designed to minimize turbulence and pressure loss at the diameter reduction point.
Exceptional Joint Strength: The molecular fusion creates a joint that is as strong as the pipe itself, providing superior reliability in high-pressure gas and water systems.
Chemical and Corrosion Resistance: Made from PE100 material, it is immune to electrochemical corrosion and resistant to a wide range of industrial chemicals.
Applications
Water Supply Networks: Transitioning from main transmission lines to smaller distribution pipes.
Gas Distribution: Safe and reliable size reduction in natural gas and LPG networks.
Industrial Process Lines: Adjusting pipe sizes in chemical processing and wastewater treatment facilities.
Mining Operations: Connecting secondary distribution lines in mineral processing and slurry transport systems.
