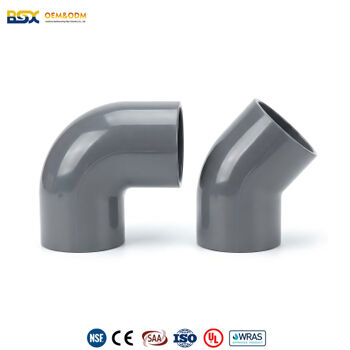

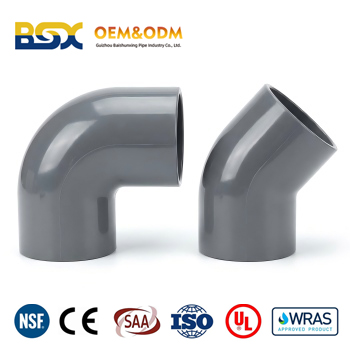

PVC Elbows (90-Degree & 45-Degree)
Raw Material: PVC resin
Standards: DIN, ASTM, Sch 80/40, JIS, BS, D1785, ISO 1452
Size: 20mm – 400mm (customizable)
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry Our PVC Elbow series is designed for efficient direction changes in piping systems. Manufactured from high-strength UPVC (unplasticized polyvinyl chloride), these elbows offer superior corrosion resistance and physical durability. Whether for a sharp 90-degree turn or a smooth 45-degree transition, our elbows ensure zero-leakage, low-friction performance over the long term. This fitting is an essential component whenever a pipeline must change direction to navigate around obstacles, follow building perimeters, or connect to equipment ports. Unlike metal elbows that can corrode internally and restrict flow over time, our PVC elbow maintains a smooth, rust-free interior throughout its entire service life. The elbow is designed with a precision-engineered internal radius that minimizes pressure loss at the bend. Available in both 90-degree and 45-degree configurations, our PVC elbow fits into municipal water supply lines, industrial process piping, agricultural irrigation networks, and pool circulation systems. The material is 100% lead-free, safe for drinking water, and resistant to a wide range of acids, alkalis, and salt spray. Produced on our newest fully automated injection lines, every elbow meets strict dimensional tolerances for a perfect fit with standard PVC pipes. For engineers, contractors, and facility managers, our PVC elbow provides a reliable, long-lasting solution for changing pipe direction without compromising flow or risking leaks.
Product Parameters
| Raw Material | PVC resin |
| Standards | DIN, ASTM, Sch 80/40, JIS, BS, D1785, ISO 1452 |
| Size | 20mm – 400mm (customizable) |
| Pressure Rating | PN8, PN10, PN16, PN20 |
Key Features
The core features of our PVC elbow cover hydraulic flow design, thickened high-pressure structure, global standards compliance, and 100% eco-friendly lead-free material.
Hydraulic Flow Design – The elbow features a precision-engineered internal radius that minimizes pressure loss and turbulence at bends. This design enhances overall system efficiency by maintaining smooth flow transitions rather than creating energy-wasting eddies. The gradual radius reduces friction and preserves downstream pressure.
Thickened High-Pressure Structure – The elbow is specifically reinforced at the outer bend to withstand water hammer impacts. Water hammer occurs when sudden valve closures or pump stops send pressure surges through the pipeline. This reinforced structure provides superior pressure resistance and crack prevention, ensuring the elbow does not rupture under surge conditions.
Global Standards Compliance – Our PVC elbow is fully compliant with DIN, ANSI Sch 80/40, JIS, and BS international standards. This facilitates direct procurement and replacement for global projects, regardless of which standard was originally specified for the pipeline system.
100% Eco-Friendly Lead-Free Material – The elbow uses a safe, lead-free polyvinyl chloride formulation. It is resistant to acids, alkalis, and salt spray, making it ideal for drinking water systems, chemical processes, and agricultural irrigation. There is zero risk of heavy metal contamination.
Hydraulic Flow Design – The elbow features a precision-engineered internal radius that minimizes pressure loss and turbulence at bends. This design enhances overall system efficiency by maintaining smooth flow transitions rather than creating energy-wasting eddies. The gradual radius reduces friction and preserves downstream pressure.
Thickened High-Pressure Structure – The elbow is specifically reinforced at the outer bend to withstand water hammer impacts. Water hammer occurs when sudden valve closures or pump stops send pressure surges through the pipeline. This reinforced structure provides superior pressure resistance and crack prevention, ensuring the elbow does not rupture under surge conditions.
Global Standards Compliance – Our PVC elbow is fully compliant with DIN, ANSI Sch 80/40, JIS, and BS international standards. This facilitates direct procurement and replacement for global projects, regardless of which standard was originally specified for the pipeline system.
100% Eco-Friendly Lead-Free Material – The elbow uses a safe, lead-free polyvinyl chloride formulation. It is resistant to acids, alkalis, and salt spray, making it ideal for drinking water systems, chemical processes, and agricultural irrigation. There is zero risk of heavy metal contamination.
Product Advantages
The product advantages of our PVC elbow focus on leak-proof connection, weathering and UV resistance, 50-year worry-free service, and smart production control.
Leak-Proof Connection – The precise socket depth paired with specialized solvent cement ensures molecular-level bonding between the elbow and the pipe. This creates a 100% leak-proof system where the joint becomes chemically fused and actually stronger than the pipe itself. No gaskets, threading, or sealants are required.
Weathering & UV Resistance – The elbow contains high-efficiency UV inhibitors in its polyvinyl chloride formulation. This prevents deformation, fading, or brittleness during prolonged outdoor use. Above-ground installations such as irrigation systems and exposed industrial lines maintain their structural integrity even under direct sunlight for many years.
50-Year Worry-Free Service – Our PVC elbow is designed for over 50 years of service, drastically reducing long-term maintenance and replacement costs. Once installed, the fitting requires no periodic coating, cathodic protection, or rust inspection. The material does not degrade in buried or submerged environments.
Smart Production Control – The elbow is powered by our newest fully automated injection lines, ensuring high dimensional consistency across every batch. Consistent socket depths and radii mean every elbow fits the intended pipe size properly, creating uniform solvent weld gaps that maximize joint strength. Additional advantages include low weight for easy handling and transport, complete corrosion immunity in all soil and water conditions, and compatibility with standard PVC pipe joining methods. For contractors, the consistent dimensions reduce installation time and eliminate fitting-related delays. For end users, the 50-year service life means one installation, one payment, and decades of reliable operation.
Leak-Proof Connection – The precise socket depth paired with specialized solvent cement ensures molecular-level bonding between the elbow and the pipe. This creates a 100% leak-proof system where the joint becomes chemically fused and actually stronger than the pipe itself. No gaskets, threading, or sealants are required.
Weathering & UV Resistance – The elbow contains high-efficiency UV inhibitors in its polyvinyl chloride formulation. This prevents deformation, fading, or brittleness during prolonged outdoor use. Above-ground installations such as irrigation systems and exposed industrial lines maintain their structural integrity even under direct sunlight for many years.
50-Year Worry-Free Service – Our PVC elbow is designed for over 50 years of service, drastically reducing long-term maintenance and replacement costs. Once installed, the fitting requires no periodic coating, cathodic protection, or rust inspection. The material does not degrade in buried or submerged environments.
Smart Production Control – The elbow is powered by our newest fully automated injection lines, ensuring high dimensional consistency across every batch. Consistent socket depths and radii mean every elbow fits the intended pipe size properly, creating uniform solvent weld gaps that maximize joint strength. Additional advantages include low weight for easy handling and transport, complete corrosion immunity in all soil and water conditions, and compatibility with standard PVC pipe joining methods. For contractors, the consistent dimensions reduce installation time and eliminate fitting-related delays. For end users, the 50-year service life means one installation, one payment, and decades of reliable operation.
Typical Applications
The typical applications of our PVC elbow span municipal infrastructure, industrial facilities, agriculture, recreational water systems, and electrical protection.
Municipal Water Supply & Drainage – The elbow is used extensively in urban water distribution networks and sewer collection systems to navigate around underground utilities, roadways, and building foundations.
Chemical & Processing Plants – Industrial facilities rely on our PVC elbow for corrosive fluid handling. The lead-free, chemical-resistant polyvinyl chloride material safely transports acids, alkalis, and salt solutions without corrosion or contamination.
Modern Agricultural Irrigation – Farmers and irrigation districts use 90-degree and 45-degree elbows to route mainlines and laterals around field obstacles, trees, and terrain features. The UV resistance ensures long outdoor service life.
High-End Pool & Spa Systems – Pool contractors install our PVC elbow in circulation plumbing between pumps, filters, heaters, and jets. The smooth hydraulic design minimizes pressure loss, and the lead-free formulation keeps pool water safe for swimmers.
Protective Electrical Conduit – The elbow serves as a 90-degree or 45-degree bend for PVC electrical conduit, protecting wiring around building corners and equipment pads. Additional applications include aquaculture water recirculation systems, food processing lines, and industrial ventilation ducts. Our PVC elbow provides reliable direction changes wherever polyvinyl chloride piping is installed.
Municipal Water Supply & Drainage – The elbow is used extensively in urban water distribution networks and sewer collection systems to navigate around underground utilities, roadways, and building foundations.
Chemical & Processing Plants – Industrial facilities rely on our PVC elbow for corrosive fluid handling. The lead-free, chemical-resistant polyvinyl chloride material safely transports acids, alkalis, and salt solutions without corrosion or contamination.
Modern Agricultural Irrigation – Farmers and irrigation districts use 90-degree and 45-degree elbows to route mainlines and laterals around field obstacles, trees, and terrain features. The UV resistance ensures long outdoor service life.
High-End Pool & Spa Systems – Pool contractors install our PVC elbow in circulation plumbing between pumps, filters, heaters, and jets. The smooth hydraulic design minimizes pressure loss, and the lead-free formulation keeps pool water safe for swimmers.
Protective Electrical Conduit – The elbow serves as a 90-degree or 45-degree bend for PVC electrical conduit, protecting wiring around building corners and equipment pads. Additional applications include aquaculture water recirculation systems, food processing lines, and industrial ventilation ducts. Our PVC elbow provides reliable direction changes wherever polyvinyl chloride piping is installed.
