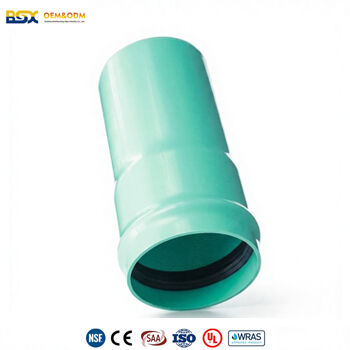

PVC-Uh high performance rigid PVC drainage pipe

PVC-Uh High Performance Rigid PVC Drainage Pipe is a high-strength unplasticized polyvinyl chloride (PVC-U) pipe system designed for gravity drainage, wastewater discharge, and underground sewerage applications.

It is engineered with enhanced material formulation (“Uh” grade high-performance PVC-U) to provide improved ring stiffness, impact resistance, and long-term structural stability compared to standard PVC drainage pipes.

This pipe is widely used in municipal drainage systems, industrial wastewater networks, and underground gravity flow pipelines where durability and deformation resistance are critical.

Advantages

• High Ring Stiffness: Enhanced structural strength for underground load-bearing conditions
• Excellent Deformation Resistance: Maintains shape under long-term soil pressure
• Corrosion-Free Material: Resistant to chemical attack, sewage corrosion, and soil acidity
• Lightweight Installation: Easier handling and lower construction cost compared to concrete pipes
• Long Service Life: Designed for 50+ years of underground operation
• Hydraulic Efficiency: Smooth inner wall reduces flow resistance and sediment buildup
• Low Maintenance Cost: Minimal maintenance required after installation
• Eco-Friendly Material: Recyclable PVC-U material suitable for sustainable infrastructure

Features and Functional Properties

PVC-Uh High Performance Drainage Pipe is engineered with optimized rigidity and structural design to deliver:

• High resistance to external soil and traffic loads
• Stable performance in deep buried pipeline systems
• Reliable gravity flow drainage capability
• Anti-aging and long-term weather resistance
• Excellent joint sealing performance in pipeline networks
• Compatibility with standard drainage fittings and manhole systems

Application Functions

PVC-Uh drainage pipes are designed for:

• Urban municipal sewer and drainage systems
• Stormwater collection and discharge pipelines
• Industrial wastewater transport systems
• Road and highway drainage infrastructure
• Residential and commercial building drainage networks
• Agricultural drainage and land reclamation systems
• Underground gravity flow sewer pipelines

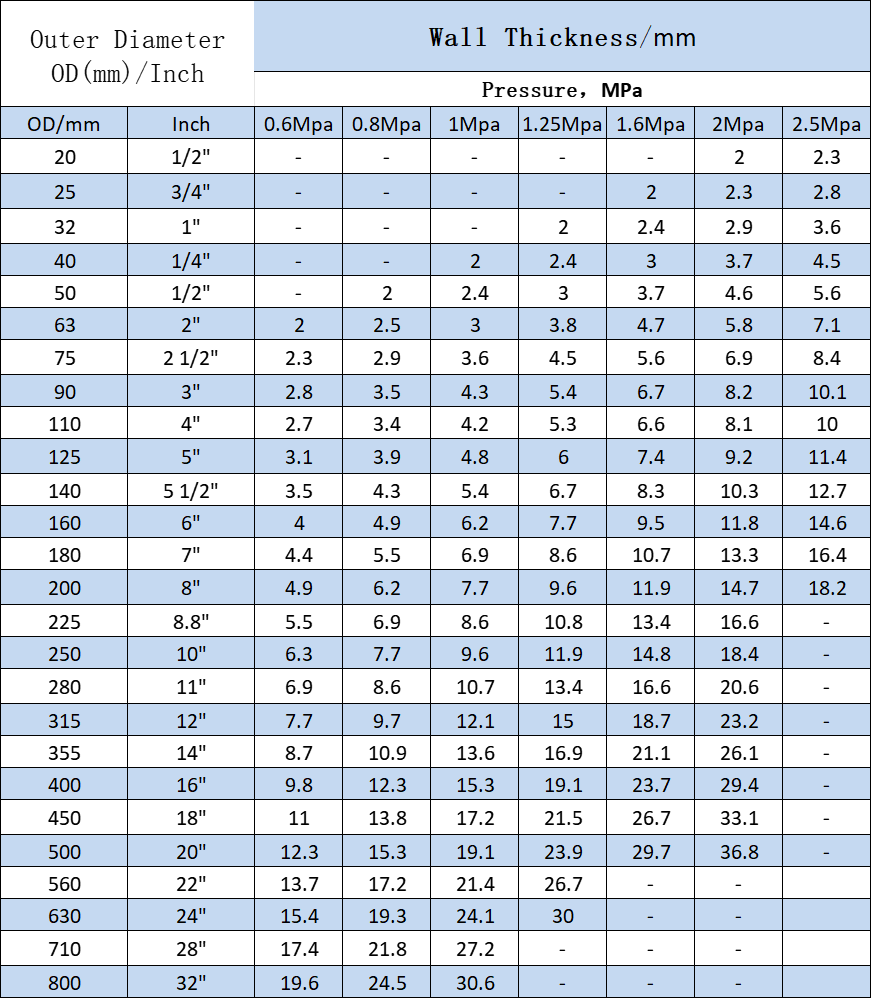

Product Parameters

FAQS

1. What does the “Uh” grade indicate in PVC-Uh drainage pipe systems?

The “Uh” grade refers to an enhanced structural formulation of rigid PVC-U material designed to improve ring stiffness and load-bearing performance under deep burial and high soil pressure conditions in underground drainage systems.

2. How does PVC-Uh pipe perform under heavy traffic load conditions?

PVC-Uh pipes are engineered with high ring stiffness values, allowing them to maintain structural integrity under dynamic loads such as highway traffic, rail crossings, and urban road infrastructure without deformation.

3. What factors should be considered when designing a PVC-Uh drainage pipeline system?

Key design factors include burial depth, soil classification, groundwater level, trench compaction quality, pipe stiffness class selection, and hydraulic gradient for gravity flow efficiency.

4. How does PVC-Uh pipe behave in chemically aggressive soil environments?

PVC-Uh material demonstrates strong resistance to acidic, alkaline, and saline soil conditions, preventing corrosion-related degradation commonly seen in metallic or concrete drainage systems.

5. Can PVC-Uh pipes be used in combined sewer and stormwater systems?

Yes, PVC-Uh pipes are suitable for combined sewer systems due to their smooth internal surface, which reduces sediment accumulation and supports consistent gravity flow performance.

6. What are the key structural failure risks in drainage pipelines and how does PVC-Uh mitigate them?

Common risks include oval deformation, joint displacement, and soil load collapse. PVC-Uh mitigates these through enhanced stiffness design, elastic joint systems, and high creep resistance under long-term loading.

7. What installation practices ensure optimal long-term performance of PVC-Uh drainage pipes?

Proper trench preparation, controlled bedding material, correct compaction levels, and alignment accuracy are critical to ensure uniform load distribution and long-term structural stability.

8. How does PVC-Uh pipe perform in low-temperature and high-temperature environments?

PVC-Uh maintains stable mechanical properties across a wide temperature range, with improved resistance to brittle fracture in cold climates and dimensional stability under moderate heat conditions.

9. What type of jointing systems are typically used in PVC-Uh drainage pipelines?

Most systems use rubber ring (elastomeric seal) socket joints that provide flexibility, watertight sealing, and resistance to ground movement without requiring solvent welding.

10. How does PVC-Uh compare to concrete pipes in lifecycle cost analysis?

PVC-Uh pipes generally offer lower lifecycle costs due to reduced installation labor, lower transportation weight, minimal maintenance requirements, and longer corrosion-free service life compared to concrete systems.

11. Can PVC-Uh drainage systems be integrated into existing municipal infrastructure?

Yes, PVC-Uh pipes are commonly used in rehabilitation and expansion projects because they are compatible with standard manholes, fittings, and existing gravity sewer infrastructure designs.

12. What engineering standards govern the design and testing of PVC-Uh drainage pipes?

PVC-Uh pipes are typically evaluated under international drainage and PVC piping standards, including structural stiffness testing, impact resistance tests, and long-term deformation performance assessments.

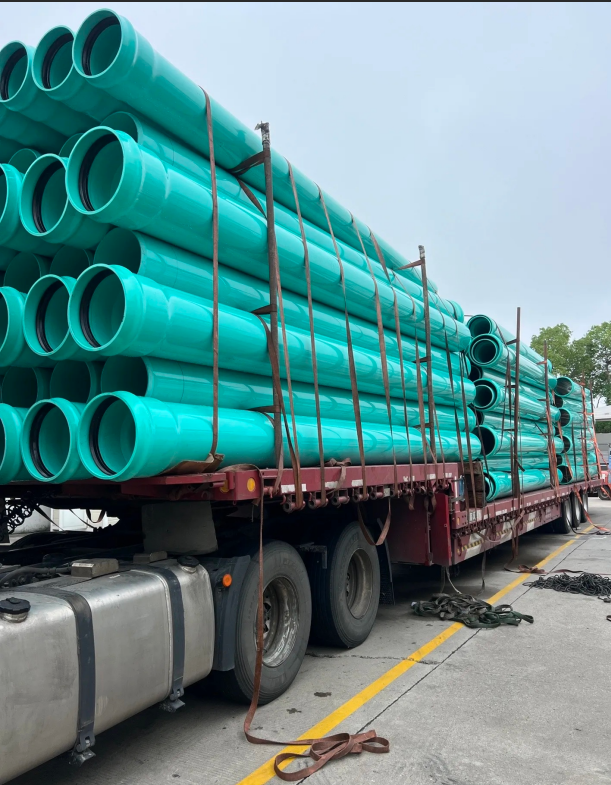

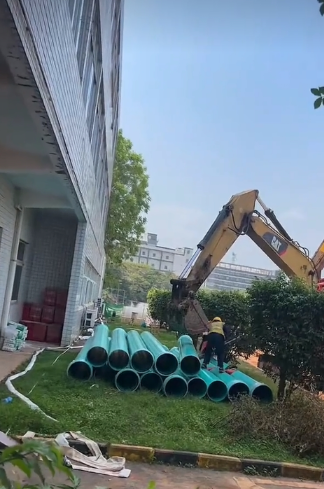

Cases
