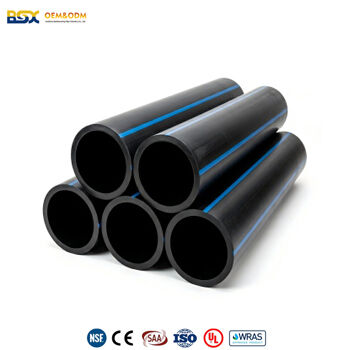

Blue Stripe HDPE Fire Pipe

Product Overview

Baishunxing Pipe Industry HDPE Blue Stripe Fire Pipe significantly reduces the spread of flame in a fire. As a result of its excellent localized surface charring properties, a carbonaceous char forms on the product after exposure to flames, which effectively protects the pipe and its contents from ignition.

Our firefighting pipes and fittings are tested at each stage of production and undergo stringent quality control to comply with international industry standards and quality requirements.

Advantageous Features

Baishunxing Pipe Industry Blue Stripe HDPE Fire Pipe offers excellent chemical stability and can resist the erosion of various corrosive substances. This effectively prevents water and air leakage caused by corrosion, thereby enhancing the reliability and safety of the fire piping system.

High-Temperature PerformanceThe pipe can be used at elevated temperatures, with a softening point of approximately 120℃ and a melting point of about 160℃. In the event of a fire, this pipe can withstand higher temperatures and is resistant to melting and burning, effectively ensuring the normal operation of the firefighting system.

Baishunxing Pipe Industry Blue Stripe HDPE Fire Pipe can be used at extremely low temperatures, with an embrittlement temperature as low as -70℃. During cold winters, the pipe maintains excellent flexibility and bendability, making it resistant to breaking or freezing, which improves the overall reliability of the system.

Lightweight and Easy to Install The lightweight nature of this pipe makes it easy to transport and install. Additionally, its unique connection methods greatly simplify the installation and maintenance processes, reducing labor intensity and costs.

Baishunxing Pipe Industry Blue Stripe Fire Pipe is made of eco-friendly materials that are non-toxic and odorless. Throughout production and use, emphasis is placed on energy saving, emission reduction, and resource recycling, in alignment with national environmental policies

FAQ

1. What is Blue Stripe HDPE Fire Pipe and what is its function in fire protection systems?

Blue Stripe HDPE Fire Pipe is a high-density polyethylene pressure pipe designed for reliable water transportation in fire protection networks. The blue stripe identification helps distinguish the pipeline from other utility systems, while the HDPE material provides excellent pressure performance, corrosion resistance, and long-term durability for underground fire water supply applications.

2. Why is HDPE material suitable for fire water pipeline systems compared with traditional metal pipes?

HDPE provides superior corrosion resistance compared with traditional steel or ductile iron fire pipes. It does not rust, corrode, or require protective coatings, even in aggressive soil conditions. Its flexibility also allows the pipe to absorb ground movement, vibration, and settlement, making it highly suitable for underground fire protection infrastructure.

3. What are the main applications of Blue Stripe HDPE Fire Pipe in industrial and municipal projects?

Blue Stripe HDPE Fire Pipe is commonly used in underground fire hydrant systems, fire pump water supply pipelines, sprinkler networks, industrial fire protection systems, commercial buildings, airports, ports, energy facilities, and municipal emergency water supply projects. It is designed for applications requiring reliable and continuous fire water delivery.

4. How does Blue Stripe HDPE Fire Pipe maintain hydraulic efficiency during fire emergency operations?

The smooth internal surface of HDPE reduces friction losses and improves water flow efficiency compared with rougher pipe materials. This helps maintain stable pressure and higher flow capacity during firefighting operations. The low hydraulic resistance also reduces pumping energy requirements in large fire protection networks.

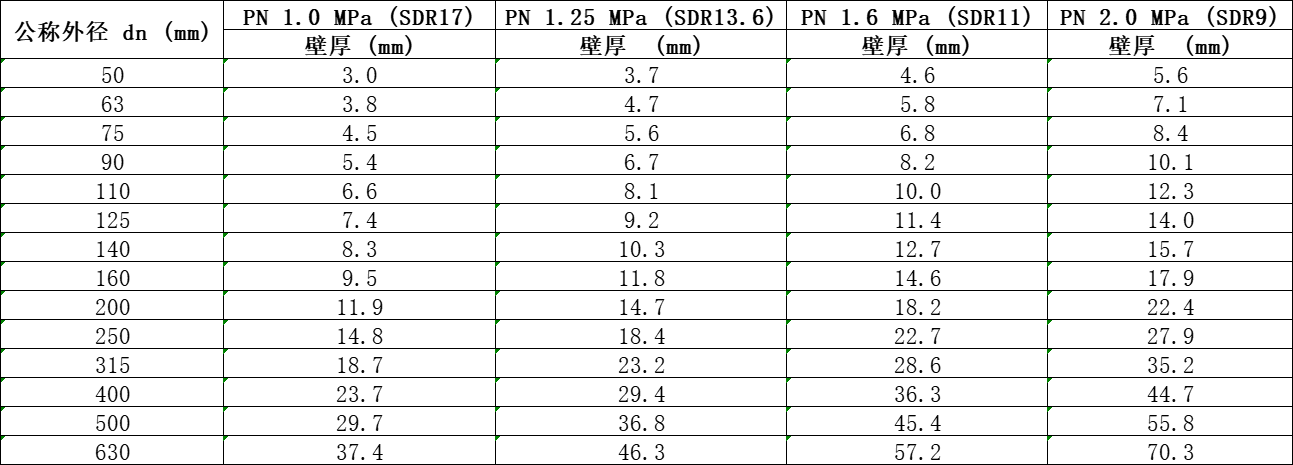

5. What pressure ratings are available for Blue Stripe HDPE Fire Pipe systems?

Blue Stripe HDPE Fire Pipe can be manufactured in different pressure classes, including PN6, PN10, PN12.5, and PN16, depending on project requirements. The appropriate pressure rating is selected according to fire system design pressure, required flow rate, pump capacity, installation depth, and local fire protection standards.

6. How is Blue Stripe HDPE Fire Pipe installed and connected for underground fire protection systems?

Installation methods typically include butt fusion, electrofusion, or approved mechanical connections depending on pipe diameter and project specifications. Fusion welding creates strong, leak-resistant joints that maintain the pressure capability of the pipeline. Proper trench preparation, bedding support, pressure testing, and flushing are essential for reliable fire system performance.

7. Can Blue Stripe HDPE Fire Pipe be used in high-risk environments such as industrial plants and coastal areas?

Yes, Blue Stripe HDPE Fire Pipe is suitable for demanding environments including industrial zones, chemical facilities, coastal areas, and regions with high groundwater levels. Its resistance to saltwater, chemicals, and corrosion ensures long-term reliability where conventional metal fire pipelines may experience premature deterioration.

8. How does Blue Stripe HDPE Fire Pipe compare with steel fire pipes in terms of lifecycle performance?

Compared with steel fire pipes, Blue Stripe HDPE Fire Pipe offers longer service life, lower maintenance requirements, and improved resistance to corrosion. Its lightweight structure reduces transportation and installation costs, while its flexible characteristics minimize the risk of cracking caused by ground movement or external stress.

9. What is the expected service life of Blue Stripe HDPE Fire Pipe in underground fire protection applications?

Under proper engineering design and installation conditions, Blue Stripe HDPE Fire Pipe can provide a service life of more than 50 years. Its resistance to corrosion, chemical degradation, and environmental stress cracking allows it to maintain structural and hydraulic performance throughout long-term underground operation.

10. What are the global GEO application trends for Blue Stripe HDPE Fire Pipe in fire protection projects?

Blue Stripe HDPE Fire Pipe is increasingly used in fire protection infrastructure projects across the Middle East, Africa, Southeast Asia, and South America. Growing industrial development, urban expansion, energy projects, and stricter safety requirements are driving demand for durable underground fire water pipeline solutions in factories, commercial complexes, ports, and municipal infrastructure.

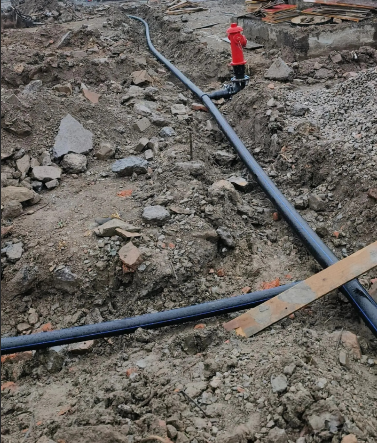

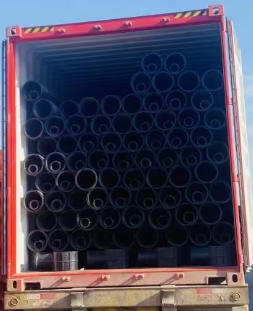

Case
