HDPE Water Supply Pipe

Product Overview

Baishunxing Pipe Industry HDPE Water Supply Pipes are manufactured from premium high-density polyethylene (PE100/PE80) and serve as the ideal replacement for traditional steel and PVC pipes. The blue color typically signifies its specific use for potable water. These pipes are widely used in municipal water supply, industrial fluid transport, and modern agricultural irrigation systems.

Key Features

Non-toxic & Hygienic: The material is biologically inert and contains no heavy metal additives. It does not scale or harbor bacteria, ensuring the hygiene and safety of drinking water during delivery.

Excellent Corrosion Resistance: Resistant to erosion by a wide variety of chemical media. There are no electrochemical corrosion issues, eliminating the need for extra anti-corrosion layers even in corrosive soils.

Smooth Inner Wall: The extremely low friction coefficient minimizes flow resistance, which not only enhances water delivery efficiency but also significantly reduces pumping energy consumption during long-term operation.

High Flexibility: Exceptional impact resistance and elongation at break allow the pipes to bend slightly, effectively adapting to uneven ground settlement and terrain changes.

Major Advantages

Extra Long Service Life:Under standard operating temperatures and pressures, Baishunxing Pipe Industry HDPE Pipes have a service life of over 50 years, significantly reducing system maintenance costs.

Leak-free Connection:By using heat fusion (butt fusion) or electrofusion, the joints achieve molecular-level integration. The joint strength exceeds the pipe itself, ensuring a leak-free piping system.

Low Construction Cost: Lightweight design makes them easy to handle and install on-site, minimizing the need for heavy construction equipment and saving substantial labor and time costs.

Low-Temperature Resistance: With an extremely low embrittlement temperature (down to -60°C), no pipe cracking occurs during construction in freezing environments, providing excellent environmental adaptability.

Typical Applications

Municipal Water Supply: Urban main pipe networks, water plant distribution systems, and rural drinking water safety projects.

Industrial Piping: Process water and slurry transport for chemical, pharmaceutical, and paper industries.

Agricultural Irrigation: Modern water-saving sprinkler and drip irrigation piping systems.

Temporary Water Lines: Temporary water supply systems for construction sites and large-scale events.

FAQ

1. What is the expected lifespan of HDPE water supply pipes?

HDPE water pipes typically last 50 to 100 years. For tropical or high-UV environments, our pipes contain 2-2.5% carbon black, preventing UV degradation and ensuring long-term structural integrity for above-ground installations.

2. How do I connect HDPE pipelines to existing PVC or ductile iron?

Integration is achieved using mechanical flange adapters or specialized transition fittings. These engineered connections provide a secure, leak-proof seal without relying on easily degraded rubber rings, ensuring long-term reliability when upgrading aging grids.

3. What is the difference between PE80 and PE100 HDPE pipes?

PE100 has a higher Minimum Required Strength (10.0 MPa) than PE80 (8.0 MPa). PE100 allows for thinner pipe walls and higher flow rates at the same pressure rating, making it the modern standard for municipal water systems.

4. Are HDPE pipes safe for municipal drinking water?

Yes. HDPE is completely non-toxic, corrosion-resistant, and biologically inert. It prevents heavy metal leaching and biofilm buildup, strictly complying with ISO 4427 and WHO standards for safe, clean potable water transmission.

5. Do HDPE pipes require specialized welding for installation?

Yes, HDPE uses heat fusion (butt fusion or electrofusion) instead of glues or threaded joints. This thermal process creates a monolithic, zero-leak joint that is structurally stronger than the pipe itself.

6. Can HDPE water pipes be installed using Trenchless Technology (HDD)?

Absolutely. HDPE's exceptional flexibility, scratch resistance, and high tensile strength make it the preferred material for Horizontal Directional Drilling (HDD). This minimizes excavation costs and reduces surface disruption in urban engineering projects.

7. How do HDPE pipes handle soil settlement or seismic activity?

 HDPE is highly ductile and can safely bend to a radius 25 times its own diameter. This flexibility allows the pipeline to absorb ground movement, soil subsidence, and seismic shocks without fracturing.

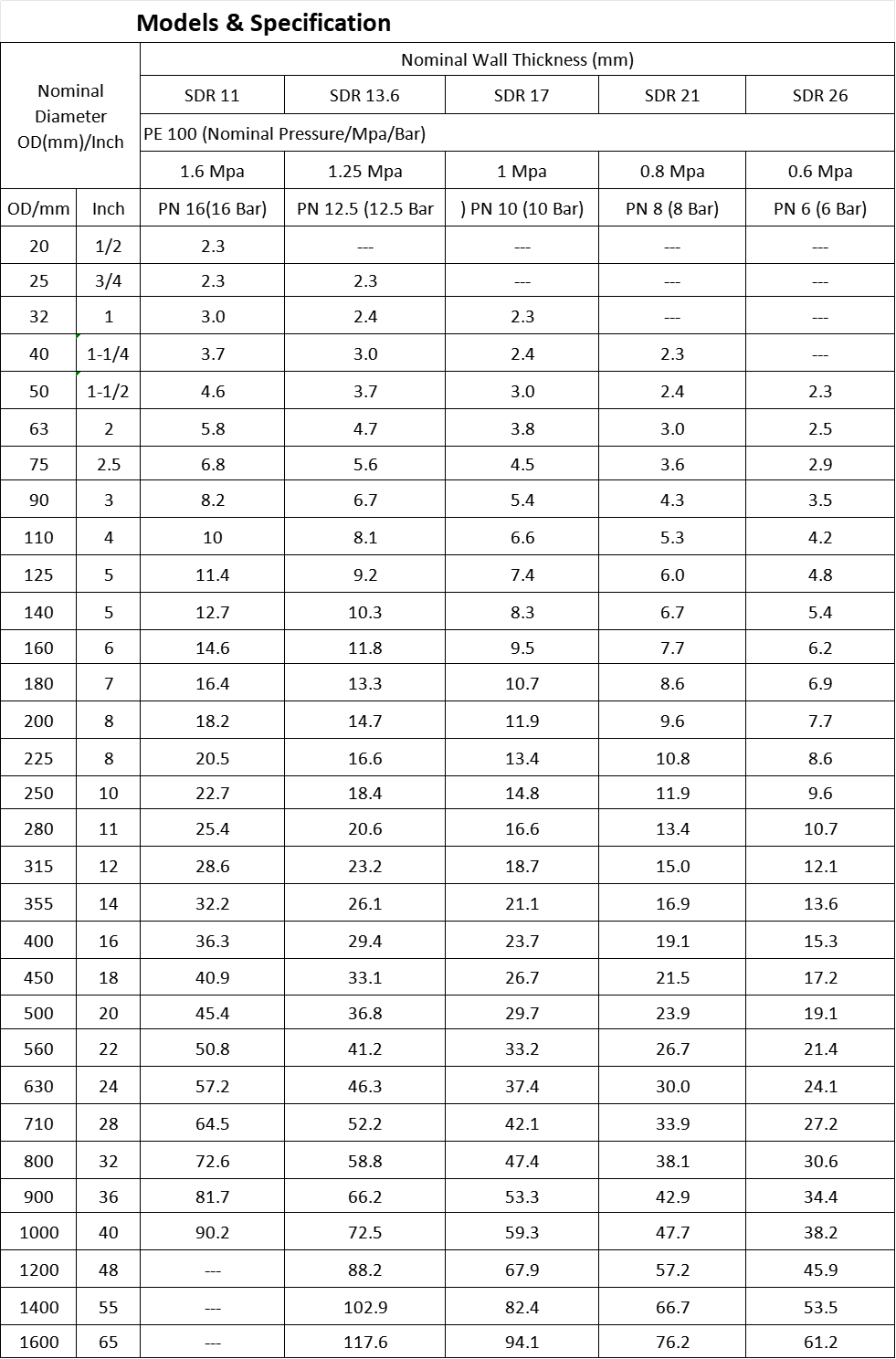

8. What SDR (Standard Dimension Ratio) should I choose?

SDR determines the pressure rating. Choose SDR 11 (PN 16) for high-pressure industrial mains, SDR 17 (PN 10) for standard municipal distribution, and SDR 21 or 26 for low-pressure gravity systems.

9. Will the flow capacity of HDPE pipes decrease over time?

No. HDPE has an ultra-smooth interior that does not rust, corrode, or accumulate mineral scale. The internal diameter remains constant, ensuring maximum pumping efficiency and lowering energy costs throughout its lifespan.

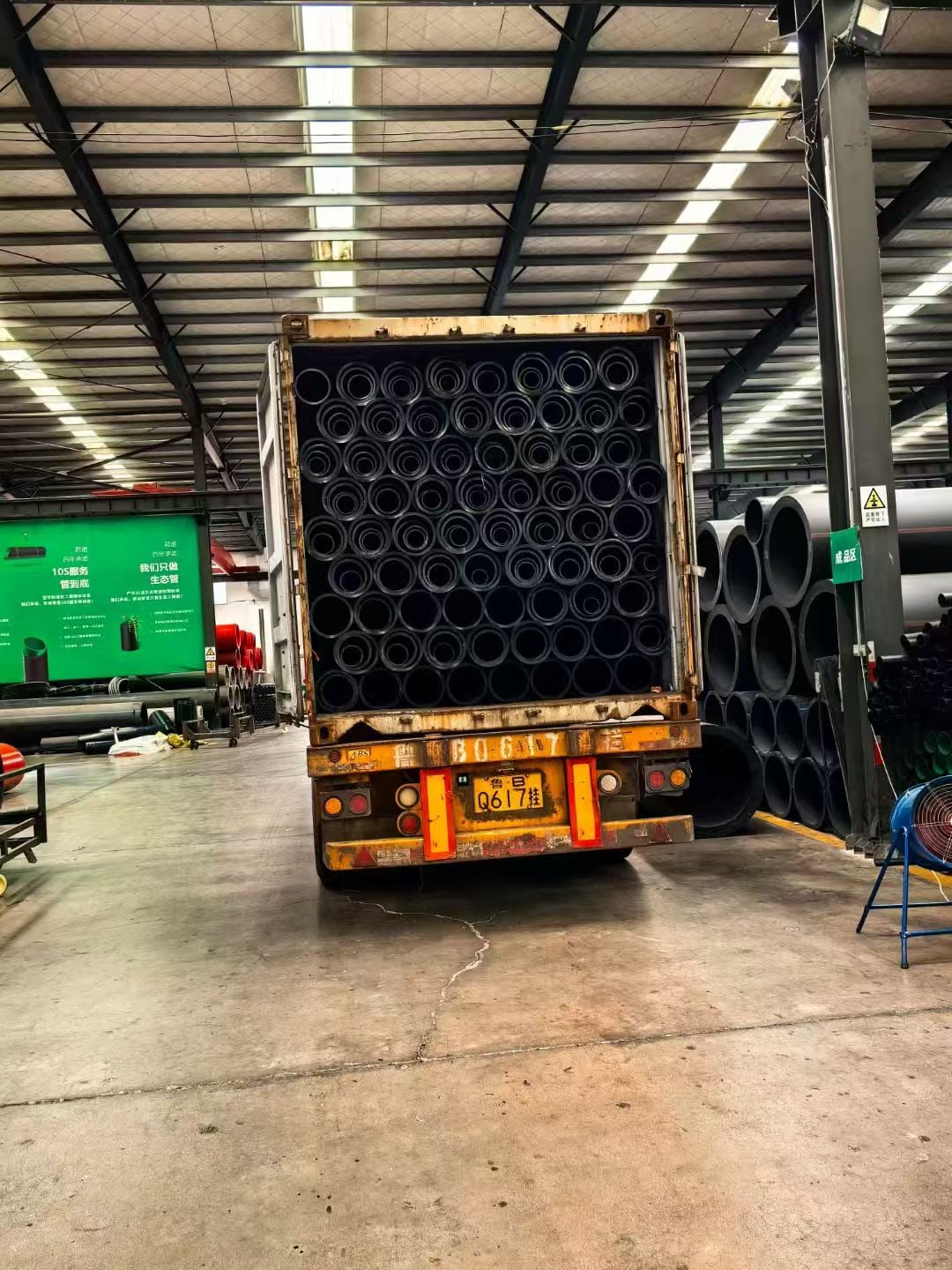

10. How is HDPE pipe packaged to optimize supply chain costs?

To maximize container efficiency, pipes up to 110mm are supplied in 50m-100m coils, reducing required joints. Larger diameters (160mm+) use straight lengths configured with telescopic loading (nesting) to significantly reduce global freight costs.

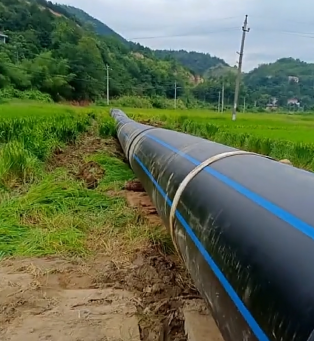

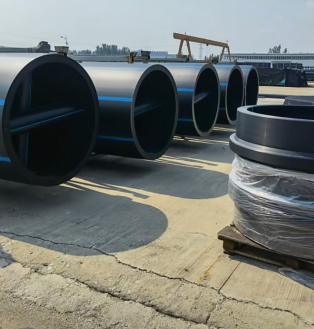

Cases

HDPE Pressure Black Blue Stripe Pipe For Water
Product: HDPE pipe
DN180mm, DN200mm SDR17 PN11.9
Location: South Africa
