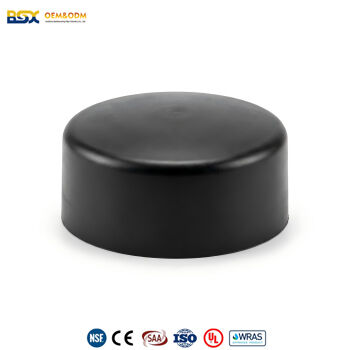

HDPE Butt Fusion End Cap
BSX HDPE Butt Fusion End Cap
Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN50-630mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR13.6, SDR17
Certificates: UL, WRAS, NSF, ISO,CE
Color: Black, colors can be customized
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry The HDPE Butt Fusion End Cap is a critical fitting used to permanently seal the end of High-Density Polyethylene (HDPE) pipelines. Utilizing butt fusion technology, the cap is heated and pressurized directly against the pipe end, creating a monolithic, leak-proof joint with strength exceeding that of the pipe itself. This ensures total system integrity even under extreme pressure conditions
Features
High-Grade Raw Materials: Manufactured from PE100 or PE80 grade materials meeting international standards, offering exceptional stress crack resistance.
Precise SDR Ratings: Available in various Standard Dimension Ratios (SDR11, SDR17, etc.) to match different pipe wall thicknesses.
Smooth Inner Surface: Excellent hydraulic characteristics reduce flow resistance and prevent sediment buildup.
UV Protection: Contains optimized carbon black additives for superior outdoor weathering and aging resistance.
Advantages
Zero-Leakage Joint: The molecular bond formed by butt fusion eliminates physical gaps at the connection, ensuring a 100% leak-free seal.
Superior Chemical Resistance: Capable of conveying strong acids, alkalis, and industrial wastewater without corrosion or degradation.
Impact Resistance: High flexibility allows the material to absorb stresses from water hammer and ground settlement.
Cost-Effective Installation: Eliminates the need for expensive mechanical couplings or gaskets, resulting in minimal long-term maintenance costs.
Applications
Mining Operations: Sealing ends of slurry pipelines and tailings management systems.
Water Treatment: Large-diameter pipe connections for wastewater treatment and desalination plants.
Energy Distribution: Terminal protection and future expansion reservation for city gas networks.
Landfill Systems: End-sealing for leachate collection and biogas extraction systems.
