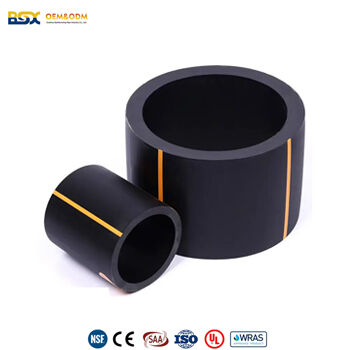

PE80 Pipe Natural Gas Pipes

Product Overview

Baishunxing Pipe Industry PE80 Natural Gas Pipes are manufactured from medium or high-density polyethylene (PE80 grade) resin, specifically designed to meet the pressure and safety requirements of urban gas networks. As an economical and highly reliable choice, they are primarily used for distributing natural gas and Liquefied Petroleum Gas (LPG) with pressure ratings up to SDR11 or SDR17.6. The pipes are typically solid yellow or black with yellow stripes.

Key Features

Excellent SCG Resistance: Ensures long-term safety of gas pipelines with strong stress-crack resistance, effectively preventing crack growth from minor damages.

Outstanding Flexibility:The pipes feature excellent flexibility, allowing them to follow uneven trenches or bypass underground obstacles, and withstand ground settlement caused by seismic activities.

Chemical Corrosion Resistance:Superior resistance to various chemical media like acids, alkalis, salts, and soil microorganisms; non-corrosive and rust-free.

Smooth Inner Wall & Low Hydraulic Resistance:The low roughness coefficient reduces pressure drops during transport, ensuring stable gas flow rates.

Major Advantages

Fusion Joint Safety: Supports butt fusion or electrofusion, achieving molecular-level integration at the joints. The joint strength exceeds the pipe itself, ensuring zero gas leakage.

High Cost-Effectiveness: Compared to PE100, PE80 offers better cost-effectiveness for low-to-medium pressure applications, effectively reducing construction costs for urban branch networks.

Easy Identification: The bright yellow appearance complies with gas industry color standards, allowing for quick identification in dense underground utility zones and preventing accidental excavation damage.

High Construction Efficiency: Lightweight design makes handling and laying easy. Small diameters can be supplied in coils, reducing the number of joints and speeding up installation.

Typical Applications

Urban Low-Pressure Gas Branches: Urban distribution networks, branch lines, and service pipes to residential users.

LPG Distribution: Centralized LPG distribution for industrial parks and residential areas.

Gaseous Media Transport: Low-pressure transport of other non-corrosive gaseous industrial media.

FAQ

1. What is PE80 pipe?

PE80 is a grade of polyethylene pipe made for gas service. The "80" refers to its strength rating (MRS 8.0 MPa) under ISO 12162. It's manufactured to gas standards like ISO 4437 or EN 1555, not general-purpose plastic pipe.

2. Is PE80 pipe safe for natural gas?

Yes. It's been used in gas networks worldwide for decades. It won't rust, flexes with ground movement, and forms leak-free joints when fused correctly by a trained installer.

3. PE80 vs PE100 — what's the difference?

PE100 is stronger, so it can use a thinner wall for the same pressure. PE80 is still widely used for low- and medium-pressure gas lines and is more budget-friendly. Which one you need depends on your project's pressure rating — check your local gas code.

4. What pressure can PE80 pipe handle?

It depends on the SDR (wall thickness ratio), not just the material. Common SDR grades for PE80 gas pipe cover low-to-medium pressure use. Always check the exact rating against your local standard (ISO 4437, EN 1555, or ASTM D2513).

5. Why is gas pipe yellow?

Yellow (or black with a yellow stripe) is just a safety color code. It tells excavators "this is a gas line" so they don't accidentally dig into it. It doesn't change the pipe's performance.

6. How long does PE80 pipe last?

With correct installation, PE gas pipe is typically rated for 50+ years of service life. Real-world lifespan depends on installation quality and staying within the rated pressure.

7. Can PE80 pipe connect to steel gas pipe?

Yes, using a PE-to-steel transition fitting — not glue, not threading directly onto PE. This fitting gives a proper leak-tight connection between the two materials.

8. Can I glue PE80 pipe joints?

No. PE pipe resists most solvents, so glue won't bond it. Joints are made by heat fusion — either butt fusion or electrofusion — done by a trained technician.

9. Can PE80 pipe be used above ground?

Not usually. It's designed for burial. Sunlight (UV) breaks it down over time, so above-ground gas lines are normally transitioned to metal pipe instead.

10. How do I pick the right PE80 pipe size?

It depends on your gas flow needs, your system's operating pressure, and pipe run length. This calculation should be confirmed by a qualified gas engineer, not estimated alone.

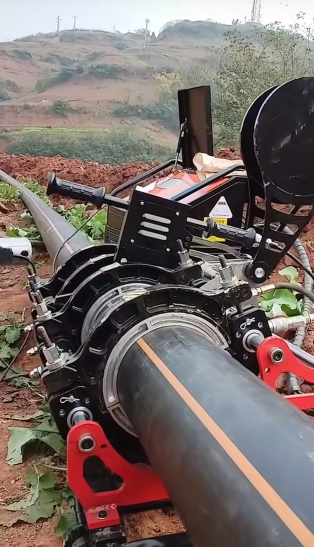

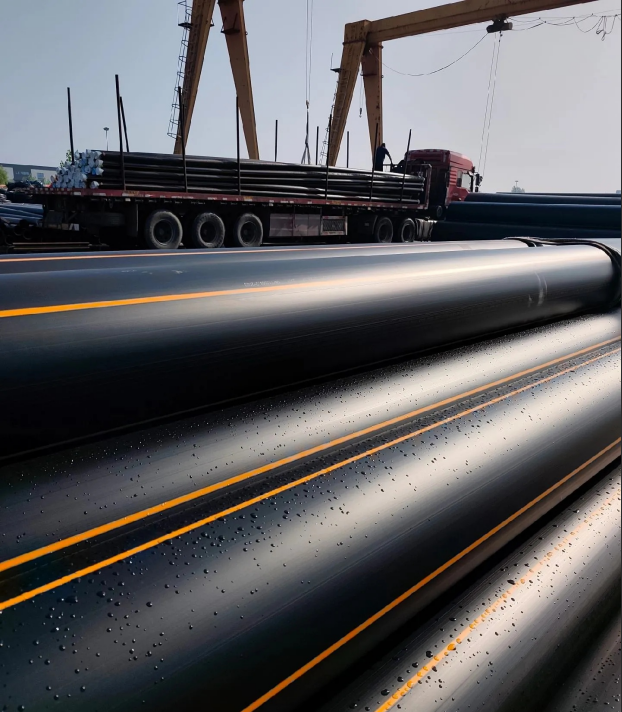

Case

Product: HDPE gas Pipe
Item : DN 400mm SDR 17
Location: Afghanistan
