HDPE Fusion Flange Set

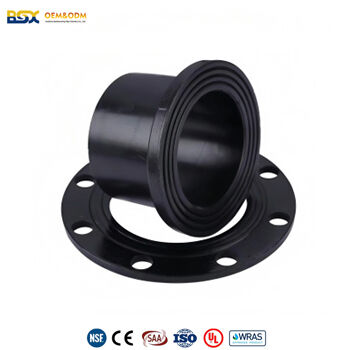

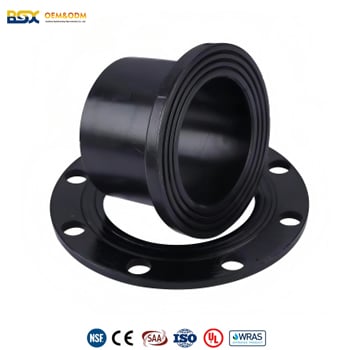

BSX HDPE Fusion Flange Set
Raw Materials: HDPE
Diameter : DN20-630mm
Pressure Rating : PN10, PN16 ASME B16.5 Class150
Standards: ISO 7005,EN1092,DIN 2501,ANSI B 16.5,ASTM D 4024
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry HDPE Socket/Butt Fusion Flange Set are high-performance connection component specifically designed for High-Density Polyethylene (HDPE) piping systems. The kit typically includes a flange adapter (socket end), a metal backup ring, a sealing gasket, and matching bolts. Utilizing the socket fusion method, it ensures superior leak-proof performance and structural integrity at the connection points.
Premium Material: Manufactured from 100% virgin high-density polyethylene (PE100/PE80), non-toxic and odorless.
Precision Socket Design: Complies with international standards (ISO/DIN/ASTM), ensuring a perfect fit with pipes and easy fusion operations.
Corrosion Resistance: Highly resistant to most acids, alkalis, salts, and organic solvents.
Complete Kit: A one-stop solution that includes all necessary components, eliminating the need for separate parts procurement.
Advantages
Long Service Life: Service life can reach over 50 years under rated temperature and pressure.
Easy Installation: Compared to butt fusion, socket fusion is more suitable for small-to-medium diameter pipes, reducing labor costs and technical difficulty.
Reliable Sealing: The strength of the fused interface is higher than the pipe itself, capable of withstanding severe pressure fluctuations and vibrations.
Low Maintenance: Smooth inner walls prevent scaling, significantly reducing long-term cleaning and maintenance expenses.
Applications
Municipal Water Systems: Connection for city water supply networks and sewage systems.
Agricultural Irrigation: Water-saving irrigation, sprinkler, and drip irrigation systems for farmland.
Industrial Transport: Transport of corrosive media in chemical plants and slurry transport in mining.
Gas Distribution: Low-pressure natural gas and manufactured gas distribution pipelines.
