Hdpe Pressure Blue Pipe For Water

Product Overview

Baishunxing Pipe Industry Blue HDPE Water Supply Pipes are manufactured from premium high-density polyethylene (PE100/PE80) and serve as the ideal replacement for traditional steel and PVC pipes. The blue color typically signifies its specific use for potable water. These pipes are widely used in municipal water supply, industrial fluid transport, and modern agricultural irrigation systems.

Key Features

Non-toxic & Hygienic: The material is biologically inert and contains no heavy metal additives. It does not scale or harbor bacteria, ensuring the hygiene and safety of drinking water during delivery.

Resistant to erosion by a wide variety of chemical media. There are no electrochemical corrosion issues, eliminating the need for extra anti-corrosion layers even in corrosive soils.

Smooth Inner Wall: The extremely low friction coefficient minimizes flow resistance, which not only enhances water delivery efficiency but also significantly reduces pumping energy consumption during long-term operation.

High Flexibility: Exceptional impact resistance and elongation at break allow the pipes to bend slightly, effectively adapting to uneven ground settlement and terrain changes.

Major Advantages

Extra Long Service Life: Under standard operating temperatures and pressures, Baishunxing Pipe Industry Blue HDPE Pipes have a service life of over 50 years, significantly reducing system maintenance costs.

Leak-free Connection:By using heat fusion (butt fusion) or electrofusion, the joints achieve molecular-level integration. The joint strength exceeds the pipe itself, ensuring a leak-free piping system.

Low Construction Cost: Lightweight design makes them easy to handle and install on-site, minimizing the need for heavy construction equipment and saving substantial labor and time costs.

Low-Temperature Resistance:With an extremely low embrittlement temperature (down to -60°C), no pipe cracking occurs during construction in freezing environments, providing excellent environmental adaptability.

Typical Applications

Municipal Water Supply: Urban main pipe networks, water plant distribution systems, and rural drinking water safety projects.

Industrial Piping: Process water and slurry transport for chemical, pharmaceutical, and paper industries.

Agricultural Irrigation: Modern water-saving sprinkler and drip irrigation piping systems.

Temporary Water Lines:Temporary water supply systems for construction sites and large-scale events.

FAQ

1. Why are HDPE pressure water pipes blue or marked with blue stripes?

Answer: In civil engineering, blue strictly denotes potable (drinking) water. Pipes are either solid blue or black with blue longitudinal stripes. This color-coding prevents dangerous cross-contamination with reclaimed water, sewage, or gas lines during municipal excavations.

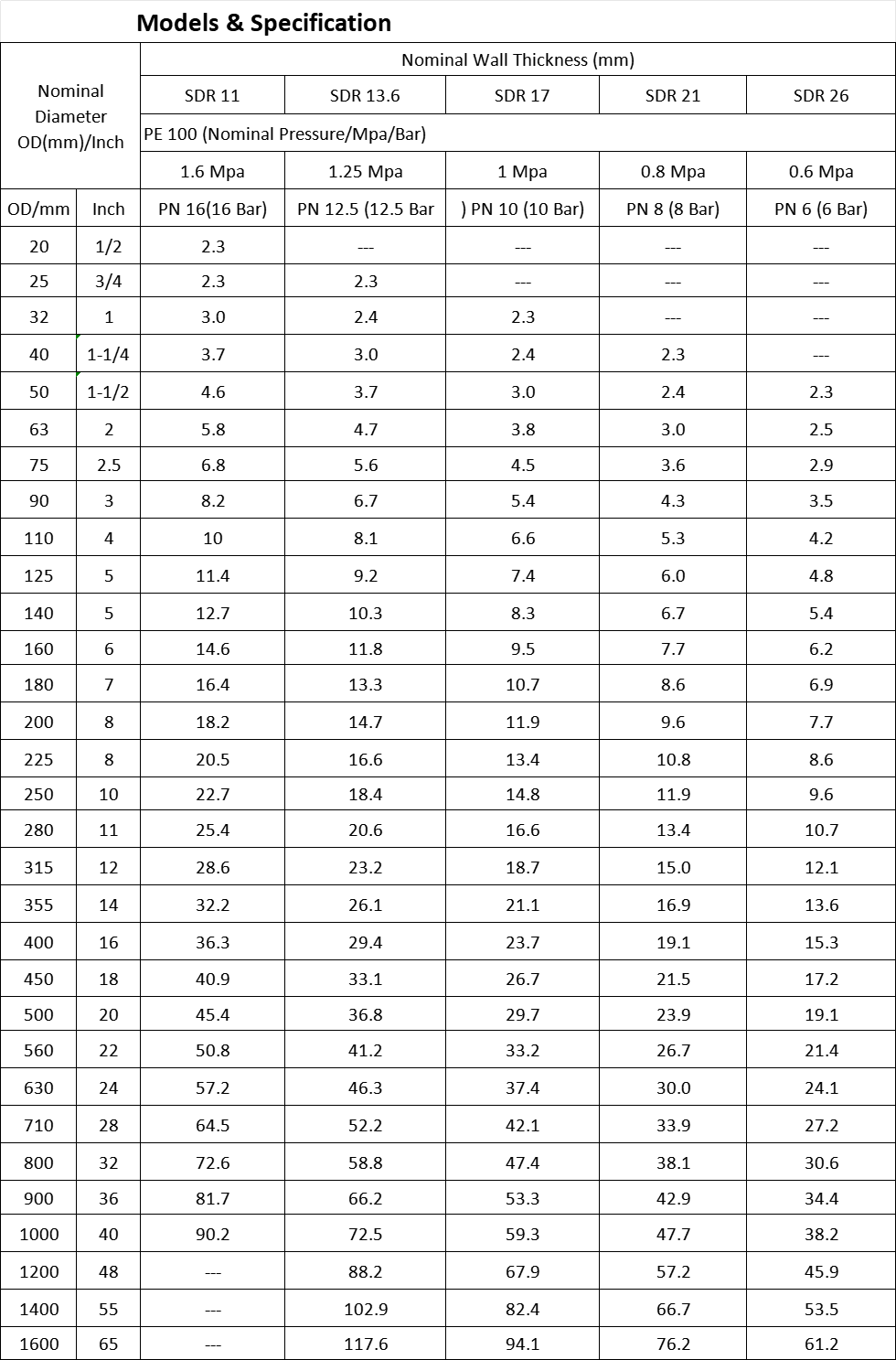

2. What is the standard pressure rating (PN) for blue HDPE pipes?

Answer: Standard ratings range from PN6 (0.6 MPa) to PN16 (1.6 MPa). As supply chain experts, we recommend PN10 (SDR 17) for standard municipal water distribution, and PN16 (SDR 11) for high-pressure industrial pumping systems.

3. Can solid blue HDPE pipes be installed above ground in hot climates?

Answer: For long-term above-ground installation in high-UV tropical regions, black HDPE with blue stripes is strictly recommended. The black carbon additive provides essential UV resistance, while the blue stripes maintain drinking water color compliance.

4. How are threaded connections designed for these pressure pipes?

Answer: For mechanical connections, we recommend precision-engineered threaded joint designs that completely eliminate the use of rubber rings. Rubber degrades rapidly under continuous pressure. Eliminating the gasket ensures a fail-safe, long-lasting seal that matches the pipe's 50-year lifespan.

5. Do high temperatures affect the pipe's pressure capacity?

Answer: Yes. The Nominal Pressure (PN) is calculated at 20°C. In high-temperature environments (e.g., 40°C), a temperature derating factor must be applied, reducing the operating pressure by roughly 25%. We factor this into all initial engineering consultations.

6. Are blue HDPE pressure pipes safe for human consumption?

Answer: Absolutely. They are manufactured from 100% virgin, food-grade PE100 resin. The material is biologically inert, preventing scaling and ensuring zero heavy metal leaching. This strictly complies with international potable water health standards.

7. How does HDPE handle water hammer and surge pressure?

Answer: HDPE has exceptional material elasticity, allowing it to absorb sudden surge pressures. It can safely withstand transient water hammer events up to 1.5 times its nominal pressure rating without bursting, outperforming rigid materials like steel or UPVC.

8. What is the most reliable welding method for high-pressure pipes?

Answer: Butt fusion and electrofusion are the global standards. These thermal processes melt the pipe ends together, creating a seamless, monolithic pipeline with a zero-leakage rate, ensuring absolute pressure stability across the network.

9. How flexible is HDPE blue pipe for uneven terrain?

Answer: Highly flexible. HDPE can bend to a radius 20 to 25 times its outside diameter. This allows the pipeline to follow rugged topographies and withstand soil subsidence, significantly reducing the need for expensive angular fittings.

10. How can bulk procurement costs be optimized for large projects?

Answer: To optimize global freight logistics, we utilize telescopic loading. By nesting smaller diameter pipes inside larger ones within standard shipping containers, we maximize cargo volume and significantly lower the per-unit delivered cost for large-scale engineering projects.

Cases

Product: HDPE pipe
DN160mm 110mm 90mm 63mm SDR17 PN11.8
Location: Dubai
