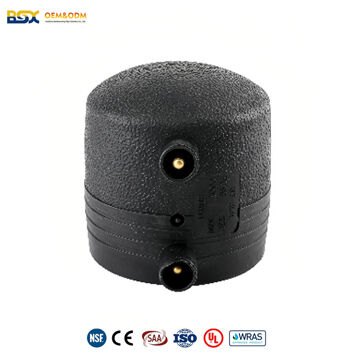

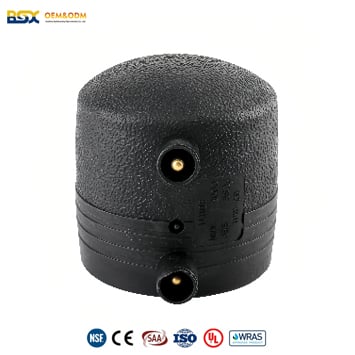

HDPE Electrofusion End Cap
BSX HDPE Electrofusion End Cap
Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN50-800mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR17, SDR26
Certificates: CE, ISO, WRAS, UL
Color: Black, colors can be customized
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry The HDPE Electrofusion End Cap is a specialized fitting designed to permanently seal the terminal end of an HDPE pipeline. It uses an integrated electrical heating system to create a high-strength, leak-proof fusion between the cap and the pipe end, ensuring the integrity of the piping system even under high pressure.
Technical Features
High-Performance PE100: Made from virgin PE100 material, providing excellent toughness and resistance to slow crack growth (SCG).
Internal Heating Network: Precision-wound copper coils inside the socket provide consistent and controlled melting for a uniform joint.
Standardized Compatibility: Features universal 4.0mm terminal pins and a barcode for automatic welding parameter configuration.
Product Advantages
Leak-Free Security: Creates a molecular bond that eliminates the risk of leaks at the pipe termination, superior to mechanical caps.
Space-Efficient Design: Its compact profile allows for sealing in tight trenches or manifold boxes where space is limited.
Corrosion Resistance: Fully resistant to chemical attack and soil corrosion, making it suitable for buried applications without extra protection.
Applications
Pipeline Termination: Permanently closing off pipe ends in water, gas, or industrial networks.
System Testing: Sealing pipe sections during pressure testing or phased construction projects.
Expansion Planning: Temporary or permanent capping of stub-outs intended for future system expansion.
