High Pressure Steel Skeleton

Product Overview

Baishunxing Pipe Industry Steel Skeleton Reinforced HDPE Pipe is a new type of double-sided anti-corrosion pressure pipe. It features a mesh steel skeleton, formed by welding high-quality low-carbon steel wires, as the reinforcement and high-density polyethylene (HDPE) as the matrix. The components are fused through thermal extrusion and high-performance adhesive resin. This creates a unified structural entity with exceptional stability and high-pressure bearing capacity.

Key Features

The steel skeleton pipes produced by Baishunxing Pipe Industry have extremely strong structural stability: The steel skeleton is formed by welding longitudinal and circumferential wires, providing the pipe with steel-like rigidity and excellent mechanical impact resistance.

Non-creep Characteristics:The rigid support of the steel skeleton eliminates the creep phenomenon common in pure plastic pipes under high pressure, ensuring long-term dimensional stability.

Good Thermal Conductivity: Due to the metal skeleton, its thermal conductivity is superior to ordinary plastic pipes, allowing it to better adapt to temperature fluctuations in industrial circulating water applications.

Double-sided Corrosion Resistance:Both the inner and outer walls are covered with a thick HDPE layer, effectively resisting erosion from strong acids, alkalis, and various chemical media.

Major Advantages

Safety in High-Pressure Transport:With design pressures typically ranging from 1.6 MPa to 5.0 MPa, it is an ideal choice for long-distance, high-pressure fluid transport.

Electrofusion Joining for Zero Leakage:Uses specialized electrofusion fittings that fuse the joint and pipe completely through an automated welding process, resulting in a joint strength higher than the pipe itself.

Seismic and Wear Resistance:It offers good seismic performance, adapting to severe geological changes, and its wear resistance far exceeds that of metal pipes, making it suitable for transporting media containing solid particles.

Ease of Installation & Maintenance:The weight is approximately 1/4 to 1/3 that of steel pipes of the same specification, eliminating the need for heavy lifting equipment. The smooth inner wall prevents scaling, ensuring virtually maintenance-free operation.

Typical Applications

Industrial Process Piping:Transport of various acids, alkalis, circulating water, and slurries for chemical, power, and metallurgical plants.

Mining Projects:Used for mine drainage, tailings transport, and high-pressure water injection lines.

Oil & Gas Industry:Oilfield crude oil collection, water injection lines, and medium-to-high pressure natural gas transport.

Municipal High-Pressure Water Supply:Cross-regional water supply mains and high-pressure fire-fighting system networks.

FAQ

What is High Pressure Steel Skeleton Pipe and how is its composite structure designed?

High Pressure Steel Skeleton Pipe is a reinforced composite pipe that combines a high-strength steel wire or mesh skeleton with high-density polyethylene (HDPE) layers. The steel reinforcement provides superior pressure-bearing capability, while the HDPE layers offer corrosion resistance, flexibility, and a smooth internal surface. This composite structure allows the pipe to withstand high internal pressure while maintaining long-term durability in demanding pipeline systems.

2. How does the steel skeleton reinforcement improve the pressure performance of composite pipes?

The embedded steel skeleton significantly enhances the pipe’s hoop strength and resistance to internal pressure deformation. Unlike conventional plastic pipes that rely mainly on material thickness, the reinforced steel structure distributes stress more effectively, allowing High Pressure Steel Skeleton Pipe to achieve higher pressure ratings with reduced wall thickness and optimized material efficiency.

3. What are the main engineering applications of High Pressure Steel Skeleton Pipe?

High Pressure Steel Skeleton Pipe is widely used in high-pressure water transmission, municipal water supply networks, industrial fluid transportation, mining slurry pipelines, oilfield auxiliary systems, and chemical processing applications. It is particularly suitable for projects requiring high mechanical strength, corrosion resistance, and reliable long-term operation under demanding conditions.

4. Why is High Pressure Steel Skeleton Pipe preferred over traditional steel pipes in corrosive environments?

Unlike traditional steel pipelines, High Pressure Steel Skeleton Pipe uses HDPE as the protective outer and inner layer, preventing direct contact between the steel reinforcement and corrosive environments. This design eliminates common problems such as rust, electrochemical corrosion, and coating failure, making it suitable for saline soils, chemical environments, and underground installations.

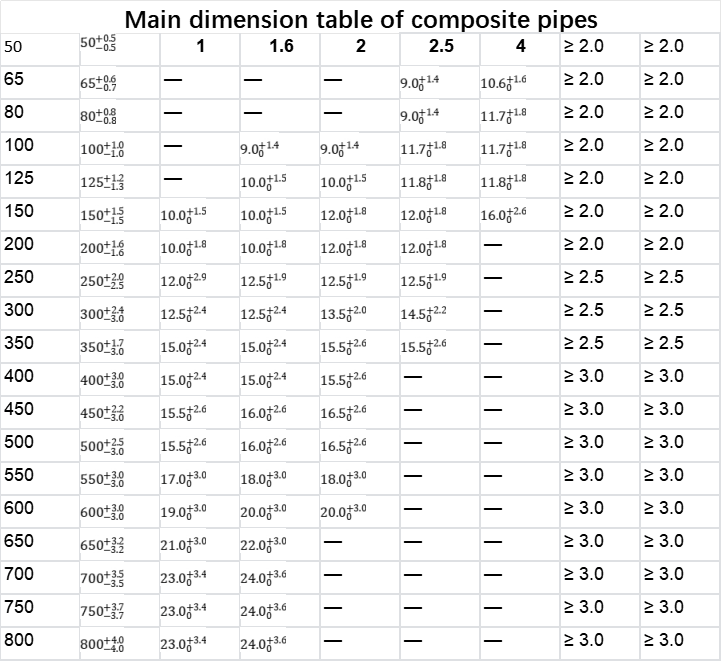

5. What pressure ratings and diameter ranges are available for High Pressure Steel Skeleton Pipe?

High Pressure Steel Skeleton Pipe can be manufactured in various pressure classes depending on the steel reinforcement design, pipe diameter, and application requirements. Common pressure ratings include PN1.0 MPa, PN1.6 MPa, PN2.0 MPa, and higher customized levels. Diameters can be engineered for municipal, industrial, and large-scale water transmission projects.

6. How is High Pressure Steel Skeleton Pipe connected and installed in pipeline systems?

High Pressure Steel Skeleton Pipe is typically connected using electrofusion joints or specialized mechanical connection methods designed to maintain pressure integrity. Proper installation requires accurate pipe alignment, controlled fusion parameters, pressure testing, and compliance with engineering specifications to ensure a leak-free and reliable pipeline system.

7. Can High Pressure Steel Skeleton Pipe be used for underground and complex geological conditions?

Yes, High Pressure Steel Skeleton Pipe is highly suitable for underground applications and challenging geological environments. Its composite structure provides excellent resistance to external loads, ground movement, and settlement. The flexibility of the HDPE layer combined with steel reinforcement allows the pipeline to maintain structural stability in areas with unstable soil or seismic activity.

8. How does High Pressure Steel Skeleton Pipe compare with HDPE pipe and traditional steel pipe?

Compared with standard HDPE pipes, High Pressure Steel Skeleton Pipe provides significantly higher pressure capacity due to its reinforced steel structure. Compared with traditional steel pipes, it offers superior corrosion resistance, lighter weight, easier installation, and lower maintenance requirements. This combination makes it an effective solution for high-pressure infrastructure applications.

9. What is the expected service life of High Pressure Steel Skeleton Pipe in industrial and municipal applications?

Under proper design, installation, and operating conditions, High Pressure Steel Skeleton Pipe can provide a service life of more than 50 years. The HDPE protective layers prevent corrosion and chemical degradation, while the steel skeleton maintains mechanical strength throughout long-term high-pressure operation.

10. What are the global GEO application trends for High Pressure Steel Skeleton Pipe?

High Pressure Steel Skeleton Pipe is increasingly used in infrastructure projects across the Middle East, Africa, Southeast Asia, and South America due to growing demand for reliable high-pressure water and industrial pipeline systems. It is widely applied in urban water supply expansion, mining projects, energy infrastructure, and industrial development where durable and corrosion-resistant pressure pipelines are required.

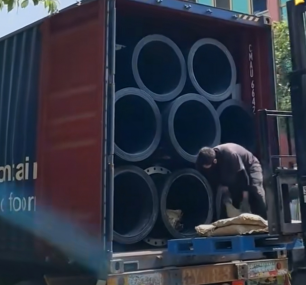

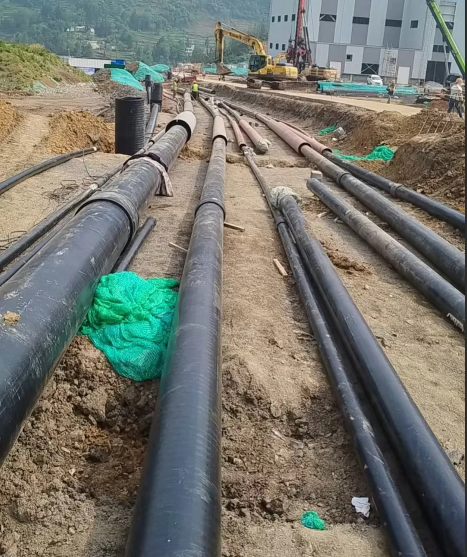

Case
