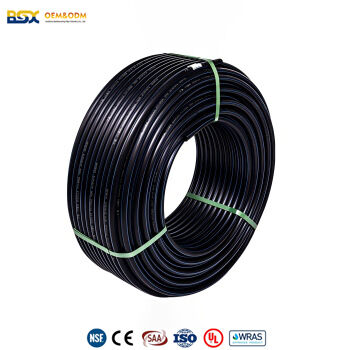

HDPE Coil Pipe for Irrigation

Product Overview

Baishunxing Pipe Industry HDPE Irrigation Pipes are high-quality pipes specifically developed for agricultural irrigation systems. Manufactured from premium High-Density Polyethylene (HDPE) resin, they offer excellent toughness, corrosion resistance, and weather durability. Widely used in drip irrigation, sprinkler systems, micro-irrigation, and farmland water diversion, these pipes are essential for achieving precision irrigation and enhancing crop yields.

Key Features

Baishunxing Pipe Industry HDPE irrigation pipes have excellent UV resistance. The pipes are added with high-efficiency UV resistance additives and carbon black. Even if they are exposed to strong sunlight for a long time on the surface, they can maintain stable performance and prevent aging and degradation.

Excellent Flexibility:The superior flexibility allows the pipes to follow rugged and uneven terrains, reducing the need for fittings like elbows, which minimizes leakage risks and simplifies installation.

Smooth Inner Wall & High Flow Efficiency:The extremely low friction coefficient prevents scaling and algae growth, ensuring smooth water flow and reducing pumping energy consumption.

Exceptional Chemical Resistance:Resistant to a wide variety of fertilizers, pesticides, and acidic or alkaline media, making them ideal for direct fertilization through the irrigation system (fertigation).

Major Advantages

Water Saving & Efficiency Enhancement:Used with drip or sprinkler systems, it enables precise water delivery to the roots, with water utilization rates exceeding 95%, significantly reducing evaporation and seepage.

Quick & Easy Installation:Lightweight and easy to transport, they support various connection methods (such as compression fittings, socket fusion, or heat fusion), greatly improving field construction efficiency.

Long Service Life & Cost-Effective: Designed for a service life of over 50 years. Their wear and impact resistance ensure excellent physical performance in both freezing and scorching environments.

Eco-Friendly & Recyclable:Non-toxic and odorless eco-friendly material ensures no pollution to soil or groundwater, and used pipes are fully recyclable.

Typical Applications

Farmland Drip Irrigation:Used as main or lateral lines for field crops like cotton, corn, and vegetables.

Orchard & Vineyard Irrigation:Providing precision root irrigation and nutrient delivery for fruit trees.

Greenhouse Irrigation:Precision micro-irrigation and misting systems for flowers and high-efficiency nurseries.

Landscaping & Sports Turf: Automated irrigation for urban parks, golf courses, and green belts.

FAQ

1. What is HDPE irrigation pipe used for?

It's used to carry water from a well, pump, or reservoir to fields, orchards, or greenhouses — for drip lines, sprinklers, or main supply lines. It's popular in farming because it's flexible, doesn't rust, and lasts a long time buried or exposed.

2. Can HDPE irrigation pipe be buried underground?

Yes, it's commonly buried below the frost line to protect it from freeze damage and farm equipment. Burial depth depends on your local climate — check regional guidelines for frost depth in your area.

3. Does HDPE irrigation pipe freeze and crack in winter?

HDPE is more flexible than PVC, so it handles some freezing better, but water left inside can still freeze and stress the pipe or fittings. In cold climates, lines are usually drained or buried below frost depth before winter.

4. Can HDPE irrigation pipe be left above ground in the sun?

Yes, but check that it's UV-stabilized (usually black) if it will stay exposed long-term. Non-UV-rated pipe left in direct sun for years can become brittle faster than buried pipe.

5. What pressure can HDPE irrigation pipe handle?

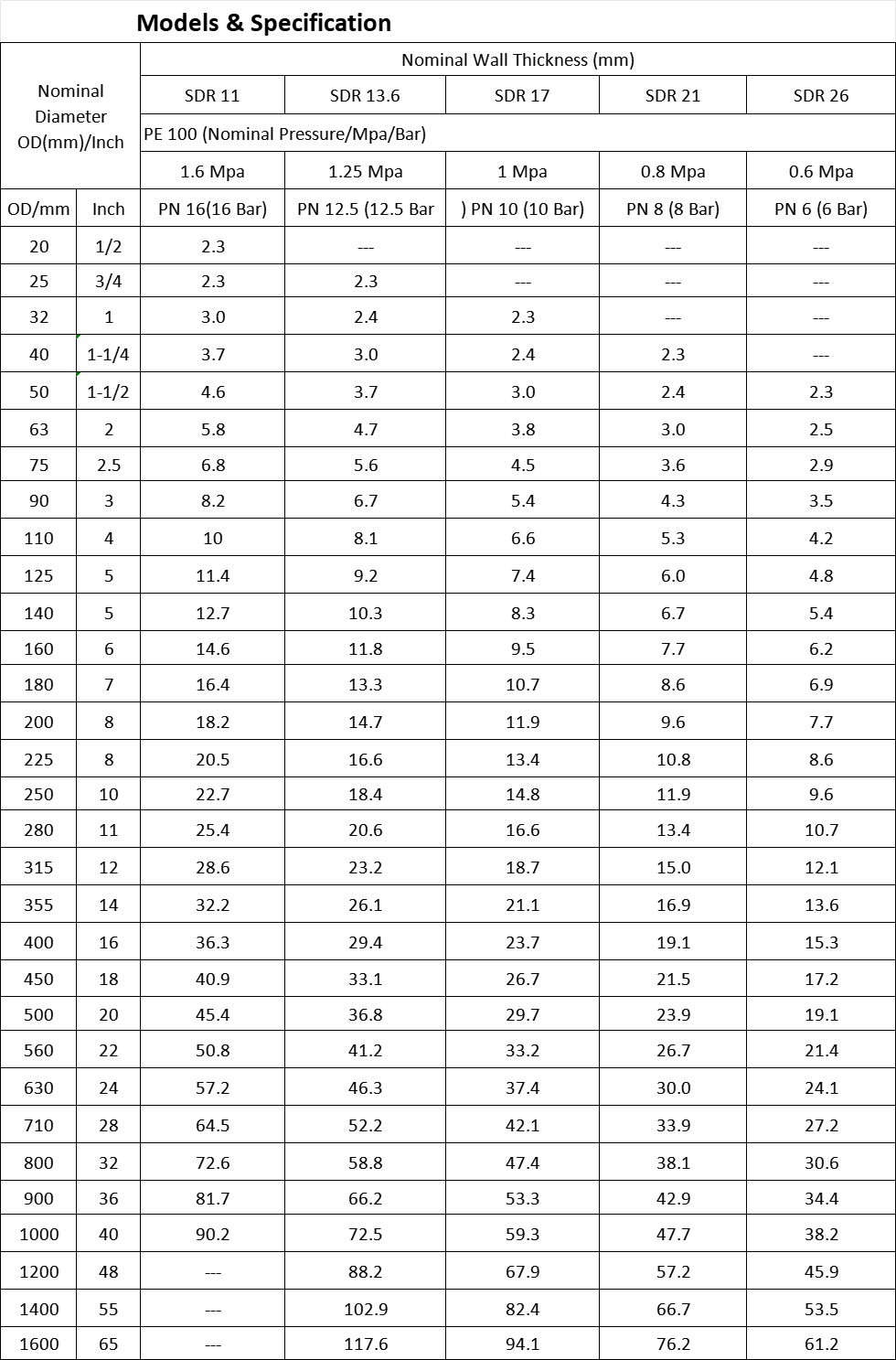

It depends on the pipe's SDR (wall thickness ratio) — a thicker wall means a higher pressure rating. Match the SDR to your pump's actual output pressure, not just the pipe diameter.

6. Is HDPE pipe compatible with fertilizers and chemical fertigation?

Generally yes — HDPE resists most common fertilizers and irrigation chemicals used in fertigation systems. Always check compatibility for specific concentrated chemicals or unusual additives with your supplier.

7. Can HDPE irrigation pipe connect to PVC pipe or drip fittings?

Yes, using the correct transition fittings or compression couplings. Don't glue HDPE like PVC — it needs mechanical fittings, compression fittings, or fusion, not solvent cement.

8. Is HDPE pipe better than PVC for irrigation?

HDPE is more flexible, handles ground movement and minor freezing better, and comes in long coiled lengths with fewer joints. PVC is rigid, often cheaper for straight aboveground runs, and easier to glue on-site — the better choice depends on your layout and budget.

9. Does HDPE irrigation pipe come in coils or straight lengths?

Both — smaller diameters are usually supplied in coils for easy transport and fewer joints across long field runs, while larger diameters are typically supplied in straight lengths and joined by fusion.

10. How long does HDPE irrigation pipe last?

With correct installation, it's typically rated for decades of service. Real-world lifespan depends on UV exposure if left above ground, staying within the rated pressure, and protection from equipment damage during field work.

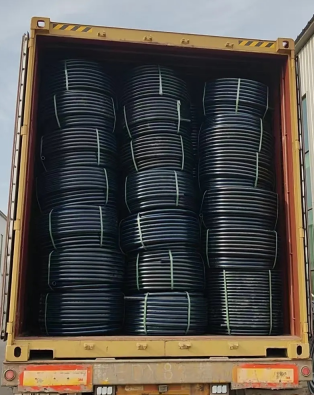

Case

Product:HDPE Coil Pipe for Irrigation
Item : DN 63mm SDR 17
Location: Indonesia
