Steel Wire Mesh Skeleton Reinforced Hdpe Pressure Pipe For Fire

Product Overview

Baishunxing Pipe Industry HDPE Steel Wire Mesh Skeleton Composite Pipe is a new type of composite pipe reinforced by a high-strength steel wire mesh skeleton (wound helically in both left and right directions) and integrated with high-density polyethylene (HDPE) as the matrix. It is continuously manufactured on a production line using high-performance adhesive resin. It overcomes the corrosion vulnerability of steel pipes and solves the creep issues of pure plastic pipes under high pressure.

Key Features

High Strength & Pressure Resistance: The steel wire mesh skeleton acts as the core reinforcement, giving the pipe rigidity similar to steel and extremely high pressure-bearing capacity, with pressure ratings up to 2.5 MPa .

Excellent Creep Resistance:Due to the steel wire skeleton, the pipe exhibits excellent dimensional stability under long-term pressure, effectively preventing the creep deformation common in plastic materials.

Low Thermal Expansion Coefficient: The steel wire mesh restricts the thermal expansion and contraction of the HDPE, resulting in a linear expansion coefficient much lower than that of pure plastic pipes, making it suitable for environments with large temperature fluctuations.

Double-sided Corrosion Resistance & Traceability:Both the inner and outer walls are made of HDPE, providing superior corrosion resistance. Additionally, the metal skeleton allows the pipe to be easily located with magnetic equipment, facilitating future maintenance.

Major Advantages

The connection of HDPE steel wire mesh skeleton composite pipes produced by Baishunxing Pipe Industry is highly reliable:Primarily joined by electrofusion, where the heating coils inside the fitting fuse seamlessly with the pipe surface, ensuring joint strength higher than the pipe itself for a permanent seal.

Wear Resistance & Smooth Inner Wall:The smooth inner wall offers minimal fluid resistance. Furthermore, the wear resistance of HDPE is several times that of steel, making it ideal for transporting sand and slurries.

Strong Construction Adaptability:The pipe possesses a degree of flexibility, allowing it to adapt to complex terrain changes and ground settlement. Compared to steel pipes, it is lighter and easier to install.

High Cost-Effectiveness:While the unit price is slightly higher than pure plastic pipes, its extra-long service life (over 50 years) and minimal maintenance frequency significantly reduce the lifecycle cost of the project.

Typical Applications

Municipal Water & Firefighting:Urban high-pressure water supply networks and underground fire-fighting water systems.

Industrial Process Piping:Transport of various acid, alkali, and salt solutions in chemical, metallurgical, paper, and pharmaceutical industries.

Mining & Tailings Transport:Mine drainage, ventilation, and long-distance transport of high-concentration tailings slurry.

Oil & Gas Industry:Oilfield water injection, crude oil collection, and low-to-medium pressure natural gas transport pipelines.

FAQ

1. Why use Steel Mesh Reinforced HDPE for underground fire mains?

Answer: Traditional steel pipes rust and scale over time, which can restrict critical water flow during an emergency. This composite pipe combines the burst strength of steel with the absolute corrosion resistance of HDPE, ensuring 100% flow capacity when you need it most.

2. Can this pipe handle the water hammer from massive fire pumps?

Answer: Yes. The embedded high-strength steel wire mesh dramatically increases the pipe's hoop strength. It effortlessly absorbs transient surge pressures and severe water hammer events that occur when high-capacity fire pumps are suddenly activated.

3. What is the pressure rating (PN) for these firefighting pipes?

Answer: Fire protection systems require immense, stable pressure. Our steel-reinforced composite pipes routinely handle high nominal pressures from 1.6 MPa (PN16) up to 3.5 MPa (PN35), making them the ultimate choice for heavy-duty industrial and municipal fire hydrant networks.

4. How are mechanical connections secured in these critical fire systems?

Answer: In life-safety fire networks, failing joints are not an option. For mechanical and threaded transitions, we strictly eliminate the use of rubber rings, which degrade under high stress. We rely exclusively on precision-engineered composite flanges and electrofusion for a zero-leak, fail-safe seal.

5. How are these pipes color-coded for fire protection identification?

Answer: In civil engineering, fire underground mains must be instantly identifiable. These reinforced pipes are manufactured either in solid red or in black with highly visible red longitudinal co-extruded stripes, preventing cross-connection accidents during future municipal excavations.

6. Is this pipe used for indoor overhead sprinklers or outdoor mains?

Answer: This pipe is engineered specifically for underground fire water distribution networks, ring mains, and outdoor hydrant systems. Because it is a thermoplastic composite, it is not intended for exposed, indoor overhead sprinkler lines that require direct flame resistance.

7. Does the internal steel mesh risk rusting from stagnant fire water?

Answer: Absolutely not. The steel wire mesh is completely encapsulated and thermally bonded within the virgin HDPE resin. The water only touches the smooth plastic interior, ensuring the steel never corrodes and no rust flakes ever block downstream fire sprinkler heads.

8. How does it perform in hot tropical climates?

Answer: Perfectly. The high-tensile steel skeleton restricts the thermal expansion of the plastic. This gives the pipe an incredibly low linear expansion coefficient, preventing warping, buckling, and structural degradation in high-temperature environments across tropical regions.

9. How do installation speeds compare to traditional welded steel pipes?

Answer: Installation is significantly faster. The composite material is much lighter than solid steel, minimizing the need for heavy lifting cranes. Using electrofusion, the jointing process is automated, reducing reliance on specialized metal welders and cutting project timelines.

10. What is the long-term supply chain advantage of this pipe?

Answer: As supply chain consultants, we prioritize Total Cost of Ownership (TCO). This pipe lowers initial global freight costs due to its lighter weight, and its 50-year corrosion-free lifespan eliminates the expensive maintenance and replacement cycles associated with legacy steel fire mains.

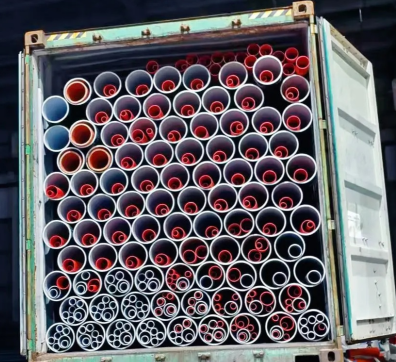

Cases

Steel Wire Mesh Skeleton Reinforced Hdpe Pressure Pipe For Fire
Product: HDPE pipe
DN250mm, DN160mm PN12
Location: USA
