PP Compression 90° Elbows
Baishunxing PP Compression 90° Elbows
raw material:PP
Standard:CE ISO
Specification:20毫米-110毫米/customization
pressure: PN6、 PN8、PN10、PN16
- Overview
- Recommended Products
Product Overview

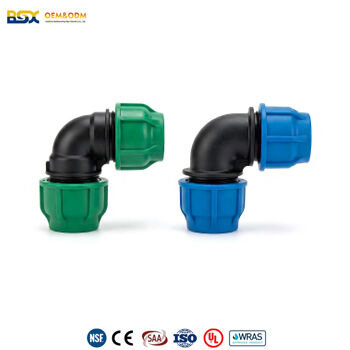

Baishunxing Pipe Industry The PP Compression 90° Elbow is a high-performance mechanical fitting designed specifically for connecting PE (Polyethylene) pipes at a right angle. Utilizing a multi-component compression mechanism, it creates a secure, leak-proof seal without the need for heat fusion, adhesives, or specialized tools. It is the most efficient solution for pipe direction changes in modern irrigation and water supply systems.
Technical Features
Five-Piece Robust Structure :
Consists of a high-strength body, heavy-duty nut, sharp-toothed clinching ring, thrust ring, and premium O-ring.
Superior Sealing :
Features a thick NBR or EPDM O-ring that maintains a perfect seal even under high pressure and vibration.
High Impact & UV Resistance :
Made from premium Polypropylene (PP-B/PP-H) with added UV stabilizers for long-term outdoor durability.
Core Advantages
Quick & Tool-Free Installation :
Significant reduction in labor time and costs. Simply "Insert and Tighten"—no electricity or heat required.
Safe & Reliable Performance :
Rated for working pressures up to PN16 (16 bar). The clinching ring prevents pipe pull-out under extreme pressure.
Detachable & Reusable :
Allows for easy system modifications or maintenance without damaging the pipe or fitting.
Corrosion Resistance:
Impervious to most acids, alkalis, and chemical fertilizers, ensuring a 50+ year service life.
Wide Applications
Agricultural Irrigation :
Perfect for greenhouse drip systems, orchard sprinklers, and open-field irrigation layouts.
Municipal Water Supply :
Used in urban and rural potable water distribution and network retrofitting.
Industrial & Mining :
Ideal for mine dewatering and transporting non-corrosive industrial fluids.
Landscaping :
Main pipelines for parks, golf courses, and residential garden watering.
