POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe

Product Overview

Baishunxing POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipes are patent-grade pipelines specifically engineered for high-pressure and abrasive mining environments. Utilizing a high-tensile steel wire mesh skeleton as the reinforcement layer, the pipes incorporate a modified POE (Polyolefin Elastomer) internal lining through an advanced co-extrusion process. This unique structure not only solves high-pressure challenges (up to 12MPa) but also provides extreme wear resistance that exceeds traditional metal and UHMWPE pipes. It is the core solution for tailings transport, concentrate delivery, and mine filling systems.

Key Features

High-Tensile Steel Wire Mesh Reinforcement: The core of the pipe is reinforced with a high-strength, helically wound steel wire mesh. This provides exceptional pressure-bearing capacity and dimensional stability. With a working pressure rating of up to 12MPa and a 3x safety factor for burst pressure, it is fully capable of handling the intense pumping demands of deep-well mining operations.
POE Co-Extruded Wear-Resistant Lining: The internal lining is made of co-extruded POE material, which features an extremely low friction coefficient. Its wear resistance is 3x higher than bimetal pipes, 8x higher than UHMWPE, and 15x higher than HDPE. Most notably, its abrasive service life is 100 times longer than that of ordinary steel pipes.
Superior Impact Absorption & Toughness: The POE material possesses excellent elastomeric properties, allowing it to effectively absorb the kinetic energy generated by the impact of large-particle slurries (such as coarse tailings). This elasticity prevents the pipe wall from suffering fatigue-induced perforation and cracking.

Major Advantages

Significant Operational Cost Reduction: By offering a lifespan 100x longer than steel, this pipe drastically reduces the frequency of replacements and associated maintenance downtime. Additionally, the low-friction inner wall reduces pumping resistance, leading to significant energy savings (10%–20% lower power consumption).
Lightweight & Effortless Installation: The pipe weighs only 1/4 of a comparable steel pipe. Its flexible structure allows it to adapt easily to the rugged and uneven terrain of mining sites, facilitating rapid installation with minimal labor and without the need for heavy lifting equipment.
Total Corrosion & Scaling Resistance: The POE internal layer is naturally immune to chemical attacks from acidic or alkaline mine water. Its ultra-smooth surface prevents the buildup of scales and sediment, ensuring a consistent and high-volume flow capacity throughout its service life.

Typical Applications

Tailings & Concentrate Transport: High-pressure, long-distance slurry transport from mineral processing plants to tailings storage facilities.
Mine Backfilling Systems: High-pressure delivery of cemented paste or slurry backfill into underground mined-out areas (stopes).
Coal Powder Conveying: Abrasive pneumatic or slurry transport of coal powder and coal slurry in washing plants and power generation facilities.
Metallurgy & Industrial Slag: Transport of highly abrasive slag in metallurgical plants and high-concentration sediment in heavy-duty dredging operations.

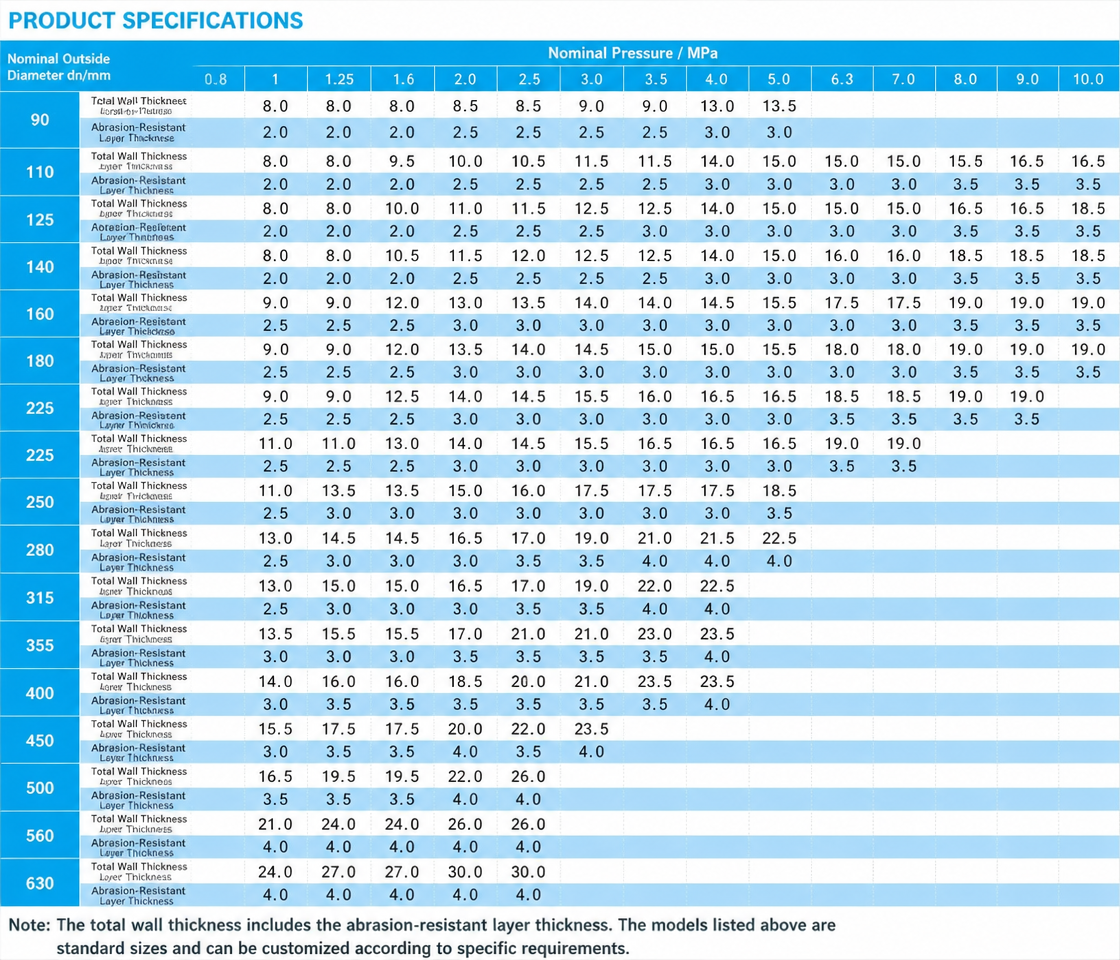

Technical Specifications Summary

Brand: Baishunxing
Product Name: POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe
Max Working Pressure: 12 MPa
Reinforcement: High-tensile Steel Wire Mesh Skeleton
Internal Lining: Modified POE (Polyolefin Elastomer) Composite
Wear Resistance Life: 100x compared to ordinary steel pipes
Weight Factor: 1/4 of steel pipes of the same specifications
Connection Method: Electro-fusion (EF) Joint / Flange Joint

FAQ
1. What is POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe?

POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe is a composite pipeline that combines a steel wire mesh skeleton, HDPE layers, and a POE co-extruded wear-resistant inner layer. It is designed for high-pressure mining applications requiring superior abrasion resistance, impact strength, and long-term operational reliability.

2. Why is a POE co-extruded layer used in mining pipes?

The POE co-extruded layer significantly improves resistance to abrasion, impact, and surface wear caused by slurry, tailings, and mineral particles. It extends pipeline service life while reducing maintenance frequency in demanding mining environments.

3. How does the steel wire mesh reinforcement improve pipe performance?

The embedded steel wire mesh increases hoop strength and pressure resistance, allowing the pipe to operate safely under high internal pressure while maintaining flexibility and dimensional stability in mining pipeline systems.

4. What mining applications are suitable for POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe?

It is widely used for mine water supply, tailings transportation, slurry conveying, backfill systems, mineral processing pipelines, and industrial wastewater discharge where abrasion and high pressure are critical concerns.

5. How does this pipe resist abrasion better than conventional HDPE mining pipes?

The POE wear-resistant inner layer absorbs continuous friction from solid particles, while the HDPE structure provides chemical resistance and the steel reinforcement maintains mechanical strength. This multi-layer design delivers significantly improved wear performance compared with standard HDPE pipes.

6. Is POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe resistant to corrosion?

Yes. The HDPE outer and inner layers provide excellent resistance to acids, alkalis, salts, and other corrosive substances commonly found in mining operations, protecting the steel reinforcement from direct exposure.

7. What connection methods are commonly used for this mining pipe?

The pipe is generally connected using electrofusion fittings or specialized mechanical joints to ensure secure, leak-free connections while maintaining the pressure performance required for mining pipeline systems.

8. Can this pipe be used in high-pressure mining slurry transportation?

Yes. Its reinforced steel wire mesh structure and abrasion-resistant POE lining make it suitable for high-pressure slurry, tailings, and mineral concentrate transportation under demanding operating conditions.

9. What is the expected service life of POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe?

When properly installed and operated, the pipe can achieve a service life of more than 50 years. The wear-resistant POE layer and corrosion-resistant HDPE structure help minimize maintenance and extend operational performance.

10. Why is POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe increasingly used in global mining projects?

Its combination of high pressure resistance, excellent abrasion protection, corrosion resistance, and reduced lifecycle costs makes it a preferred solution for mining infrastructure projects across Africa, Australia, South America, Southeast Asia, and other major mining regions.

Case

Product: POE Co-Extruded Steel Wire Mesh Reinforced Mining Pipe

DN250mm, DN160mm PN12
Location: Indonesia
