HDPE Electrofusion Equal Tee
BSX HDPE Electrofusion Equal Tee
Raw Materials: PE100, PE100RC
Standards : EN12201, ISO 4427, AS/NZS 4129
Diameter: DN50-800mm (Larger size can be customized)
PressureRating: SDR9, SDR11, SDR17, SDR26
Certificates: CE, ISO, WRAS, UL
Color: Black, colors can be customized
- Overview
- Recommended Products
Product Introduction

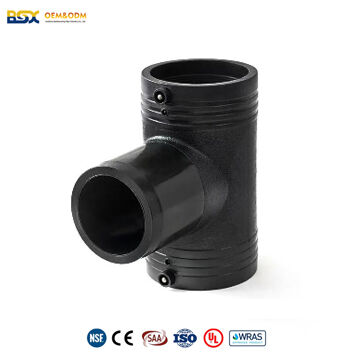

Baishunxing Pipe Industry The HDPE Electrofusion Equal Tee is a three-way pipe fitting designed to create a branch connection of the same diameter as the main pipeline. Using integrated electrical resistance technology, it fuses the main run and the branch into a single, high-strength structure, providing a reliable solution for fluid distribution in HDPE piping networks.
Technical Features
Symmetrical Design: All three openings have identical diameters, ensuring balanced flow distribution and pressure across the connection.
High-Quality Copper Coils: Precision-embedded heating wires provide uniform heat distribution for a perfect fusion zone on all three ends.
Integrated Monitoring: Equipped with a standard barcode for automatic welding parameter synchronization with electrofusion machines.
Product Advantages
Maximum Joint Integrity: The fusion process creates a leak-proof, molecular bond that is often stronger than the pipe itself, capable of withstanding significant mechanical stress.
Versatile Installation: Ideal for use in tight spaces or challenging environments where traditional butt-fusion equipment cannot operate effectively.
Exceptional Durability: Resistant to chemical corrosion, biological growth, and environmental stress cracking, offering a service life of over 50 years.
Applications
Municipal Water Distribution: Branching main water lines into secondary distribution networks.
Natural Gas Networks: Safe and reliable T-junctions for gas transmission and distribution.
Industrial Piping Systems: Distributing process fluids, chemicals, or cooling water in industrial facilities.
Mining & Slurry Transport: Creating distribution manifolds for abrasive materials and mineral processing.
