UPVC High Pressure Submersible Water Pump Pipe
Raw Material: PVC resin (Unplasticized PVC / UPVC)
Diameter Range: DN20 – DN1000 mm (customizable)
PressureRatings:Can withstand pressure 10 Bar – 35 Bar
Certifications: CE, ISO9001, ISO14001
Standards Compliance:ISO 1452 ；ISO 4422；ASTM D1785
connection type：Thread joint
- Overview
- Recommended Products
- High Pressure Resistance: Available in pressure ratings from 4 bar to 16 bar, suitable for deep well pumping systems.
- Corrosion Resistance: Resistant to rust, scaling, and chemical corrosion in aggressive groundwater environments.
- Lightweight and Easy Installation: Significantly lighter than steel pipes, reducing transportation and installation costs.
- Long Service Life: Durable structure ensures stable performance for decades under normal operating conditions.
- Smooth Inner Surface: Reduces friction loss and improves water flow efficiency.
- Non-Toxic Material: Safe for drinking water and irrigation applications without contamination risk.
- Cost-Effective Solution: Lower overall system cost compared to metal piping systems.
- Standard Compliance: Manufactured according to ISO and ASTM international standards for quality assurance.
- Vertical water lifting from deep wells
- Submersible pump discharge pipelines
- Groundwater extraction and transportation
- Irrigation water supply systems
- Municipal and rural water supply projects
- Industrial water transfer systems
- Environmental and monitoring well systems
- Deep well pumping systems in agricultural irrigation projects
- Residential and municipal water supply wells
- Industrial groundwater extraction systems
- Desert, coastal, or high-salinity soil conditions
- Remote areas requiring low-maintenance water pipelines
- Projects requiring corrosion-resistant and long-life piping solution
product descriptionUPVC High Pressure Submersible Water Pump Pipe is a rigid pressure piping system manufactured from high-quality unplasticized polyvinyl chloride (PVC resin). It is specially designed for submersible pump discharge applications in deep wells, boreholes, and groundwater extraction systems.
The pipe is engineered to withstand continuous internal water pressure while maintaining excellent dimensional stability and long-term durability under underground conditions. It is widely used as a reliable alternative to traditional metal pipes in water lifting and transmission systems.
Advantages
Functions
Suitable Scenarios
Product Parameters
| American Standard High-Pressure Water Pump Pipe Specifications | |||
| No | Diameter (inches) | Type | Specifications (mm) |
| 1 | 1 1/4" | SCH40 | 40*3.6 |
| 2 | SCH80 | 40*4.9 | |
| 3 | SCH120 | 40*5.5 | |
| 4 | 1 1/2" | SCH40 | 48*3.8 |
| 5 | SCH80 | 48*5.1 | |
| 6 | SCH120 | 48*5.8 | |
| 7 | 2" | SCH40 | 60*4.0 |
| 8 | SCH80 | 60*5.6 | |
| 9 | SCH120 | 60*6.4 | |
| 10 | 2 1/2" | SCH40 | 75*5.2 |
| 11 | SCH80 | 75*7.1 | |
| 12 | SCH120 | 75*7.7 | |
| 13 | 3" | SCH40 | 88.9*5.5 |
| 14 | SCH80 | 88.9*7.7 | |
| 15 | SCH120 | 88.9*8.9 | |
| 16 | 4" | SCH40 | 114.3*6.1 |
| 17 | SCH80 | 114.3*8.6 | |
| 18 | SCH120 | 114.3*11.1 | |
FAQ
1. What is UPVC High Pressure Submersible Water Pump Pipe used for?
UPVC High Pressure Submersible Water Pump Pipe is used to transport groundwater from deep wells using submersible pumps. It is widely applied in irrigation, municipal water supply, industrial water systems, and borehole pumping projects.
2. Why choose UPVC pipes for submersible pump systems?
UPVC pipes are preferred for submersible pump systems because they offer high pressure resistance, corrosion protection, long service life, and lower installation costs compared to steel pipes.
3. What pressure rating does UPVC submersible pump pipe support?
This pipe is available in multiple pressure classes, including 4 bar, 6 bar, 9 bar, 12 bar, and 16 bar, making it suitable for different depths and pumping requirements.
4. Can UPVC high pressure water pump pipes be used in deep wells?
Yes, UPVC submersible pump pipes are designed for deep well applications and can safely transport water under pressure depending on the selected pipe class and installation design.
5. What sizes are available for UPVC submersible pump pipes?
The pipe is available in diameters ranging from DN20 to DN1000 mm, and custom sizes can be produced for large-scale water supply or industrial projects.
6. Is UPVC submersible pump pipe suitable for drinking water systems?
Yes, UPVC material is non-toxic and complies with international standards, making it safe for potable water transportation in municipal and residential water systems.
7. How long does UPVC high pressure water pump pipe last?
Under normal operating conditions, UPVC submersible pump pipes can last 20–50 years due to their resistance to corrosion, scaling, and chemical degradation.
8. What standards does this UPVC water pump pipe meet?
The product is manufactured in compliance with ISO 1452, ISO 4422, and ASTM D1785 standards for PVC pressure piping systems.
9. What are the advantages of UPVC pipes over steel pump pipes?
Compared to steel pipes, UPVC pipes are lighter, corrosion-free, easier to install, and more cost-effective while still providing strong pressure resistance for water pumping applications.

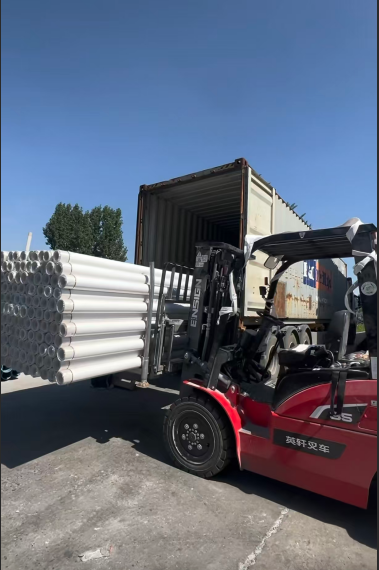

10. Where can UPVC high pressure submersible pump pipes be supplied or exported?
These pipes are commonly supplied for global water infrastructure projects, including markets in Asia, Africa, the Middle East, and South America for agriculture, irrigation, and municipal water systems.

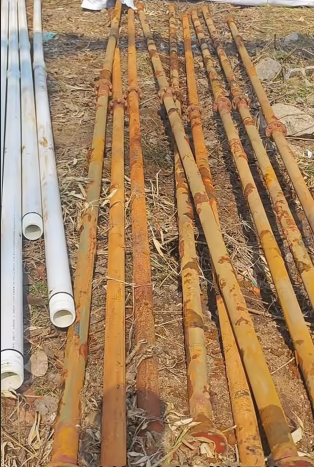

Cases
Project: Drilling engineering
Product: UPVC riser Pipe
11/4inchASTM F480,11/2 inch ASTM F480,2inchASTM F480
Location: Philippines
