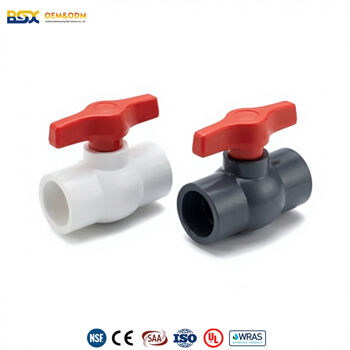

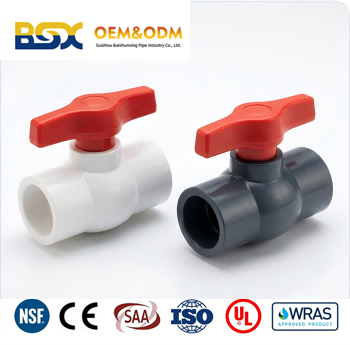

PVC Simple Ball Valve (Compact Type)
Raw Material: PVC resin
Standards: DIN, ASTM, Sch 80/40, JIS, BS, D1785, ISO 1452
Size: DN15mm – DN100mm (customizable)
- Overview
- Recommended Products
Product Introduction
Baishunxing Pipe Industry The PVC Simple Ball Valve, also known as a Compact Ball Valve, is the most cost-effective and lightweight flow control solution in piping systems. Its integrated, one-piece injection-molded design eliminates unnecessary union parts, resulting in an exceptionally compact structure. It is the premier choice for agricultural irrigation, residential water supply, and low-pressure industrial lines, helping you significantly lower project costs without compromising performance. Unlike bulky double union valves that include removable end pieces, this simple ball valve features a single, unified body with integral sockets or threads. The one-piece construction reduces material usage, weight, and manufacturing complexity while maintaining reliable flow control functionality. The valve operates with a standard quarter-turn mechanism: when the handle is aligned with the pipe, the full-port ball allows maximum flow; when perpendicular, flow stops completely. Manufactured from high-purity UPVC (unplasticized polyvinyl chloride), the valve offers excellent corrosion resistance and UV stability for both indoor and outdoor installations. The precision-ground ball and ergonomic handle ensure smooth, effortless operation even after long periods of inactivity. Available in both socket (solvent weld) and threaded connection types, the PVC simple ball valve fits seamlessly into new installations or retrofit projects. For contractors, farmers, and maintenance teams, this compact valve delivers reliable on/off control at a price point that makes large-scale deployment practical and affordable.
Product Parameters
| Raw Material | PVC resin |
| Standards | DIN, ASTM, Sch 80/40, JIS, BS, D1785, ISO 1452 |
| Size | DN15mm – DN100mm (customizable) |
| Pressure Rating | PN8, PN10, PN16, PN20 |
Key Features
The core features of our PVC simple ball valve cover the ultra-compact one-piece body, full port flow, high-impact UPVC material, and smooth easy operation.
Ultra-Compact One-Piece Body – The integrated body and ports save valuable installation space and fundamentally minimize potential leakage points. With no union nuts, sealing rings, or removable end pieces, there are fewer components that can fail or loosen over time. The compact profile allows installation in tight valve boxes, confined equipment rooms, or crowded pump panels where larger valves simply will not fit.
Full Port Flow – Despite its compact size, the full-port design ensures minimal pressure drop and maintains high flow output throughout the system. The ball opening matches the internal diameter of the connected pipe, eliminating flow restrictions common in reduced-port valves. This full port feature is especially important in gravity-fed systems or long piping runs where every inch of pressure head matters.
High-Impact UPVC Material – The valve is made from high-purity UPVC polyvinyl chloride with excellent corrosion and UV resistance. This ensures stable operation in both indoor and outdoor environments without degradation from sunlight, moisture, or soil chemicals. The material resists rust, scale, and chemical attack from most acids, alkalis, and salt solutions.
Smooth & Easy Operation – The precision-ground ball and ergonomic handle ensure minimal rotational resistance for smooth, effortless quarter-turn operation. The ball is polished to a mirror finish, reducing friction against the PTFE or rubber seats. The handle is contoured for a comfortable grip and provides clear visual indication of valve position.
Ultra-Compact One-Piece Body – The integrated body and ports save valuable installation space and fundamentally minimize potential leakage points. With no union nuts, sealing rings, or removable end pieces, there are fewer components that can fail or loosen over time. The compact profile allows installation in tight valve boxes, confined equipment rooms, or crowded pump panels where larger valves simply will not fit.
Full Port Flow – Despite its compact size, the full-port design ensures minimal pressure drop and maintains high flow output throughout the system. The ball opening matches the internal diameter of the connected pipe, eliminating flow restrictions common in reduced-port valves. This full port feature is especially important in gravity-fed systems or long piping runs where every inch of pressure head matters.
High-Impact UPVC Material – The valve is made from high-purity UPVC polyvinyl chloride with excellent corrosion and UV resistance. This ensures stable operation in both indoor and outdoor environments without degradation from sunlight, moisture, or soil chemicals. The material resists rust, scale, and chemical attack from most acids, alkalis, and salt solutions.
Smooth & Easy Operation – The precision-ground ball and ergonomic handle ensure minimal rotational resistance for smooth, effortless quarter-turn operation. The ball is polished to a mirror finish, reducing friction against the PTFE or rubber seats. The handle is contoured for a comfortable grip and provides clear visual indication of valve position.
Product Advantages
The product advantages of our PVC simple ball valve focus on superior cost-effectiveness, universal easy installation, 100% lead-free safety, and advanced automated manufacturing.
Superior Cost-Effectiveness – The simplified industrial design provides a highly competitive price point, ideal for large-scale wholesale and bidding projects. By eliminating unnecessary union components, we pass the material and manufacturing savings directly to the customer. For projects requiring hundreds or thousands of valves, the cost difference between simple ball valves and double union valves is substantial.
Universal Easy Installation – The valve is available in both socket and threaded connection types. No specialized tools are required for installation, ensuring maximum on-site installation efficiency. Socket ends are solvent-welded to PVC pipes using standard cement. Threaded ends screw directly onto male NPT or BSP fittings using PTFE tape.
100% Lead-Free & Safe – The PVC simple ball valve is completely rust-proof and lead-free, strictly meeting global health and safety standards for drinking water. No heavy metal stabilizers are used in the polyvinyl chloride formulation. This makes the valve safe for potable water systems, food processing lines, and residential plumbing.
Advanced Automated Manufacturing – The valve is produced on our latest high-efficiency injection lines, with every unit undergoing 100% seal pressure testing before leaving the factory. Automated production ensures consistent dimensions, uniform wall thicknesses, and defect-free molded parts. The 100% testing guarantees that every valve arrives ready for immediate installation. Additional advantages include lightweight construction for easy handling and reduced shipping costs, quarter-turn operation for rapid open/close response, and a long service life exceeding 50 years in most water applications. The simple design means fewer parts to maintain or replace. For contractors, the low cost allows competitive bidding on large irrigation and municipal projects. For farmers, the compact valve fits easily into existing PVC pipe networks without expensive modifications. For residential users, the lead-free material provides peace of mind for drinking water applications.
Superior Cost-Effectiveness – The simplified industrial design provides a highly competitive price point, ideal for large-scale wholesale and bidding projects. By eliminating unnecessary union components, we pass the material and manufacturing savings directly to the customer. For projects requiring hundreds or thousands of valves, the cost difference between simple ball valves and double union valves is substantial.
Universal Easy Installation – The valve is available in both socket and threaded connection types. No specialized tools are required for installation, ensuring maximum on-site installation efficiency. Socket ends are solvent-welded to PVC pipes using standard cement. Threaded ends screw directly onto male NPT or BSP fittings using PTFE tape.
100% Lead-Free & Safe – The PVC simple ball valve is completely rust-proof and lead-free, strictly meeting global health and safety standards for drinking water. No heavy metal stabilizers are used in the polyvinyl chloride formulation. This makes the valve safe for potable water systems, food processing lines, and residential plumbing.
Advanced Automated Manufacturing – The valve is produced on our latest high-efficiency injection lines, with every unit undergoing 100% seal pressure testing before leaving the factory. Automated production ensures consistent dimensions, uniform wall thicknesses, and defect-free molded parts. The 100% testing guarantees that every valve arrives ready for immediate installation. Additional advantages include lightweight construction for easy handling and reduced shipping costs, quarter-turn operation for rapid open/close response, and a long service life exceeding 50 years in most water applications. The simple design means fewer parts to maintain or replace. For contractors, the low cost allows competitive bidding on large irrigation and municipal projects. For farmers, the compact valve fits easily into existing PVC pipe networks without expensive modifications. For residential users, the lead-free material provides peace of mind for drinking water applications.
Typical Applications
The typical applications of our PVC simple ball valve span agricultural irrigation, residential water supply, water treatment and filtration, and temporary water supply.
Agricultural Irrigation – The valve is used in automatic irrigation systems for farmland, orchards, and landscaping. Farmers install these compact valves at zone boundaries, manifold outlets, and drip irrigation headers. The low cost per valve makes it practical to equip every irrigation zone with its own shut-off.
Residential Water Supply – The valve serves household and building water supply networks and tank control applications. Homeowners use simple ball valves at water heater connections, under-sink shut-offs, and rain barrel outlets. The compact size fits easily into tight under-cabinet spaces.
Water Treatment & Filtration – The valve provides control of simple filters, water softeners, and aquarium equipment. Hobbyists and small-scale treatment operators use the valve to isolate filter housings for media changes without draining entire systems. The lead-free material is safe for fish tanks and drinking water filters.
Temporary Water Supply – The valve is ideal for temporary pipelines on construction sites and in mines. Crews need low-cost, reliable shut-offs for dust control systems, dewatering lines, and site office water supplies. The lightweight valve is easy to transport between job sites. Additional applications include livestock watering systems, greenhouse irrigation, and small fountain recirculation lines. Our PVC simple ball valve delivers dependable, affordable flow control across all these diverse environments.
Agricultural Irrigation – The valve is used in automatic irrigation systems for farmland, orchards, and landscaping. Farmers install these compact valves at zone boundaries, manifold outlets, and drip irrigation headers. The low cost per valve makes it practical to equip every irrigation zone with its own shut-off.
Residential Water Supply – The valve serves household and building water supply networks and tank control applications. Homeowners use simple ball valves at water heater connections, under-sink shut-offs, and rain barrel outlets. The compact size fits easily into tight under-cabinet spaces.
Water Treatment & Filtration – The valve provides control of simple filters, water softeners, and aquarium equipment. Hobbyists and small-scale treatment operators use the valve to isolate filter housings for media changes without draining entire systems. The lead-free material is safe for fish tanks and drinking water filters.
Temporary Water Supply – The valve is ideal for temporary pipelines on construction sites and in mines. Crews need low-cost, reliable shut-offs for dust control systems, dewatering lines, and site office water supplies. The lightweight valve is easy to transport between job sites. Additional applications include livestock watering systems, greenhouse irrigation, and small fountain recirculation lines. Our PVC simple ball valve delivers dependable, affordable flow control across all these diverse environments.
