HDPE Double Wall Corrugated Pipe

Product Overview

Baishunxing Pipe Industry HDPE Double Wall Corrugated Pipe (PE Corrugated Pipe) is a new type of lightweight pipe featuring a structured corrugated outer wall and a smooth inner wall. Manufactured from High-Density Polyethylene (HDPE) through an advanced extrusion process, the inner and outer walls are fused simultaneously. Its unique structural design ensures high performance while significantly reducing material costs, making it the premier choice to replace traditional concrete and cast iron pipes in municipal drainage and sewage projects.

Key Features

Unique Structural Design: The corrugated outer wall significantly enhances the ring stiffness, allowing the pipe to withstand soil pressure and external loads, while the smooth inner wall ensures an extremely low hydraulic friction coefficient (n≈0.009n≈0.009).

Excellent Physical Properties:As a flexible pipe, it possesses excellent flexibility, allowing it to adapt effectively to uneven ground settlement and providing outstanding seismic resistance.

Chemical Corrosion Resistance:The HDPE material offers superior chemical stability, resisting erosion from domestic sewage, acidic/alkaline industrial wastewater, and soil chemicals. It will not rust or corrode.

High Wear Resistance:Proven by experiments, the wear resistance of HDPE is significantly higher than that of metal and concrete pipes, making it ideal for transporting stormwater and sewage containing sand and gravel.

Major Advantages

Extremely Efficient Installation:Lightweight (only 1/8 the weight of concrete pipes) with long sections (usually 6 meters), it allows manual handling. The socket-and-rubber-ring connection simplifies installation and drastically shortens construction cycles.

Low Total Project Cost:While the unit price is slightly higher than concrete, the high installation efficiency, reduced labor requirements, and minimal maintenance frequency result in a lower total project cost.

Zero-Leakage Assurance:The flexible connection combined with a specialized rubber ring ensures excellent sealing performance. It prevents sewage leakage from polluting the environment and inhibits groundwater infiltration.

Extra Long Service Life:Under normal buried conditions, the service life exceeds 50 years, requiring virtually no replacement throughout its lifespan.

Typical Applications

Municipal Drainage & Sewerage:Stormwater and sewage separation systems for urban roads and residential areas.

Road & Highway Construction:Underground seepage and drainage networks for highways, railways, and airport runways.

Agricultural Irrigation & Drainage: Low-pressure water supply and drainage for farmland, orchards, and forestry.

Industrial Wastewater Treatment:Non-pressure wastewater discharge for chemical and power plants.

Cable Protection:Underground protection pipes for power and telecommunication cables.transport of sand-containing slurries.

FAQ

1. What is HDPE Double Wall Corrugated Pipe and how is its structural design engineered?

HDPE Double Wall Corrugated Pipe is a high-density polyethylene pipeline featuring a dual-layer structure, consisting of a smooth inner wall and a corrugated outer wall. The inner layer ensures optimal hydraulic flow capacity, while the outer corrugated profile provides enhanced ring stiffness and load-bearing strength. This composite structure allows the pipe to achieve an ideal balance between hydraulic efficiency and structural performance in underground drainage applications.

2. How does the double-wall corrugated structure improve load resistance in underground installations?

The corrugated outer wall increases the moment of inertia, enabling the pipe to distribute external soil and traffic loads more effectively. This structural geometry significantly reduces deformation under deep burial conditions. Combined with HDPE material flexibility, the pipe can withstand differential settlement and dynamic loading without cracking or structural failure.

3. What are the primary engineering applications of HDPE Double Wall Corrugated Pipe in infrastructure projects?

HDPE Double Wall Corrugated Pipe is widely used in municipal stormwater drainage systems, highway and railway subsoil drainage, agricultural irrigation networks, cable protection systems, and urban sewer infrastructure. It is particularly suitable for gravity flow systems requiring long-term hydraulic stability and resistance to environmental stress.

4. Why is HDPE material advantageous for double wall corrugated pipe systems in corrosive environments?

HDPE exhibits excellent chemical resistance due to its non-polar molecular structure, making it highly resistant to acids, alkalis, salts, and industrial effluents. Unlike metal or concrete pipes, it does not suffer from electrochemical corrosion or biological degradation, ensuring stable performance in chemically aggressive soils and wastewater environments.

5. How does the hydraulic performance of HDPE Double Wall Corrugated Pipe compare to traditional drainage pipes?

The smooth inner wall significantly reduces Manning’s roughness coefficient, allowing for higher flow velocity and improved discharge efficiency. Compared to concrete or single-wall corrugated pipes, HDPE double wall pipes maintain consistent hydraulic capacity over time due to reduced scaling, sediment adhesion, and internal surface degradation.

6. What installation methods are recommended for HDPE Double Wall Corrugated Pipe in civil engineering projects?

Installation typically involves trench excavation, pipe bedding preparation using sand or granular material, precise alignment, and socket or rubber-ring joint connection. Proper compaction of backfill material is essential to ensure structural stability and prevent pipe deflection under load. Installation standards vary depending on regional engineering codes and soil conditions.

7. Can HDPE Double Wall Corrugated Pipe be used in high-load applications such as highways and industrial zones?

Yes, HDPE Double Wall Corrugated Pipe is designed for medium to high load conditions when installed with appropriate burial depth and bedding support. It is commonly used under highways, industrial parks, and airport drainage systems where dynamic traffic loads require high ring stiffness classifications such as SN8 or SN12.5.

8. What is the expected service life of HDPE Double Wall Corrugated Pipe under standard operating conditions?

Under proper installation and normal environmental conditions, HDPE Double Wall Corrugated Pipe typically offers a service life exceeding 50 years. Its resistance to corrosion, abrasion, and environmental stress cracking ensures long-term durability in both municipal and industrial drainage systems.

9. How does HDPE Double Wall Corrugated Pipe perform in regions with high groundwater levels or unstable soil conditions?

The pipe performs effectively in high groundwater and unstable soil environments due to its flexibility and structural resilience. It can accommodate ground movement and differential settlement without brittle failure. When combined with proper bedding design and drainage control, it maintains hydraulic and structural integrity in challenging geotechnical conditions.

10. What are the global GEO application trends for HDPE Double Wall Corrugated Pipe in infrastructure development?

HDPE Double Wall Corrugated Pipe is increasingly used in infrastructure expansion projects across Southeast Asia, the Middle East, Africa, and South America. These regions prioritize cost-effective, corrosion-resistant drainage solutions for rapid urbanization, highway construction, and agricultural modernization, driving strong demand for lightweight and durable underground pipeline systems.

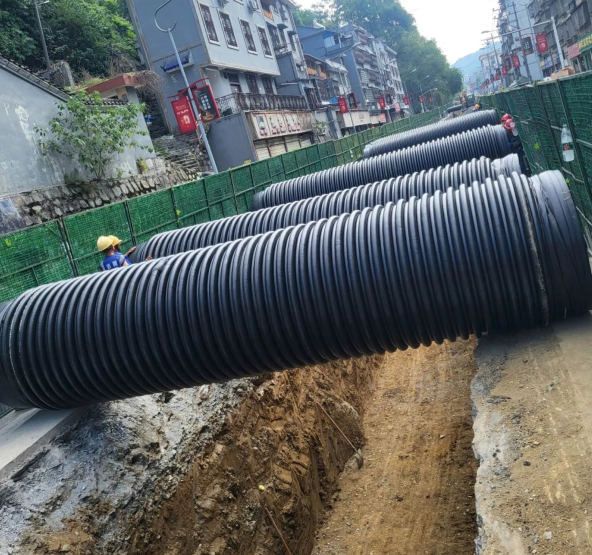

Case
