Water Supply

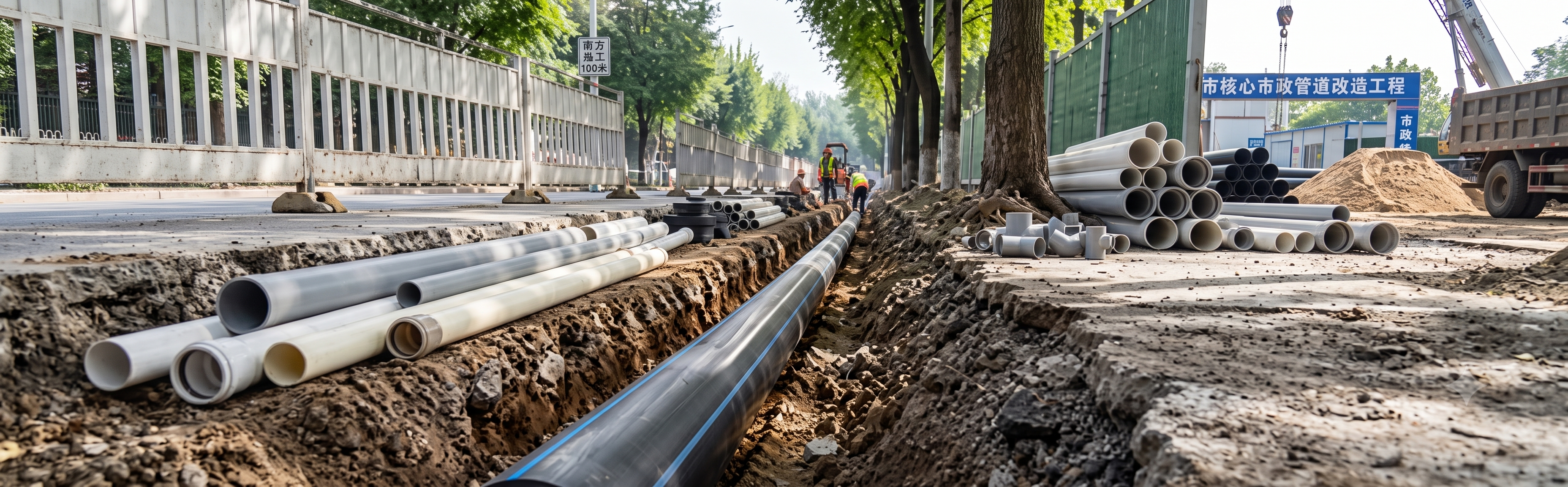

Municipal Potable Water Supply Pipeline Solutions
Engineering Reliable Water Distribution Networks Through Advanced Polymer Pipeline Technology
Global urban water supply infrastructure faces engineering challenges such as aging pipeline networks, high rates of Non-Revenue Water (NRW), underground environmental corrosion, and steadily rising long-term maintenance costs.
BSX Pipe offers municipal water supply solutions based on HDPE PE100 and PVC-U pressure piping systems. Through careful material selection, pressure rating design, thermal fusion jointing technology, and quality control systems that meet international standards, these solutions ensure over 50 years of operational reliability for drinking water transmission and distribution projects.
International Water Supply Engineering Challenges
1.Reducing Non-Revenue Water (NRW) Caused by Pipeline Leakage。
In global urban water supply systems, network leakage—often referred to as Non-Revenue Water is a critical issue affecting water resource utilization efficiency and operational costs.
Due to long-term exposure to soil corrosion:| Soil corrosion | Interface aging | Foundation settlement | Water hammer pressure surges |
Prone to cracking and leakage at connection points. |
For large-scale municipal water supply projects, even a relatively low rate of continuous leakage can lead to:
|
Energy waste in water treatment |
Increased pump station operating costs |
Damage to underground infrastructure |
Drop in urban water supply pressure |
BSX Pipe’s HDPE PE100 system achieves long-term, stable operation by utilizing molecular structure optimization and thermal fusion jointing to reduce potential leakage points associated with traditional mechanical connections.
2.Maintaining Hydraulic Performance Under Long-Term Operation
Common issues encountered during system operation include:
Reduced flow due to scaling on the inner pipe walls
Secondary contamination caused by corrosion of metal pipes
Fatigue damage resulting from pressure fluctuations
HDPE and PVC-U materials feature:
Smooth inner walls (low hydraulic friction)
Excellent corrosion resistance
No rust-related contamination
They maintain design flow rates over the long term and reduce lifecycle maintenance costs.
3.Adapting Pipeline Installation to Complex Urban Conditions
Modern water supply projects increasingly adopt:
Dense urban installation
Seismic area pipeline networks
Trenchless HDD crossing
HDPE PE100 pipes possess high flexibility and impact resistance, enabling them to absorb stresses caused by ground movement and enhance the safety margin of underground pipe networks.
BSX Pipe Water Supply System Solutions
BSX Pipe offers two core water supply piping solutions HDPE PE100 and PVC-U tailored to project pressure ratings, installation environments, and lifecycle cost requirements.
Material selection is not a matter of simple substitution; rather, it involves systematic engineering alignment based on:
Operating Pressure
Soil Condition
Installation Method
Service Life Requirement

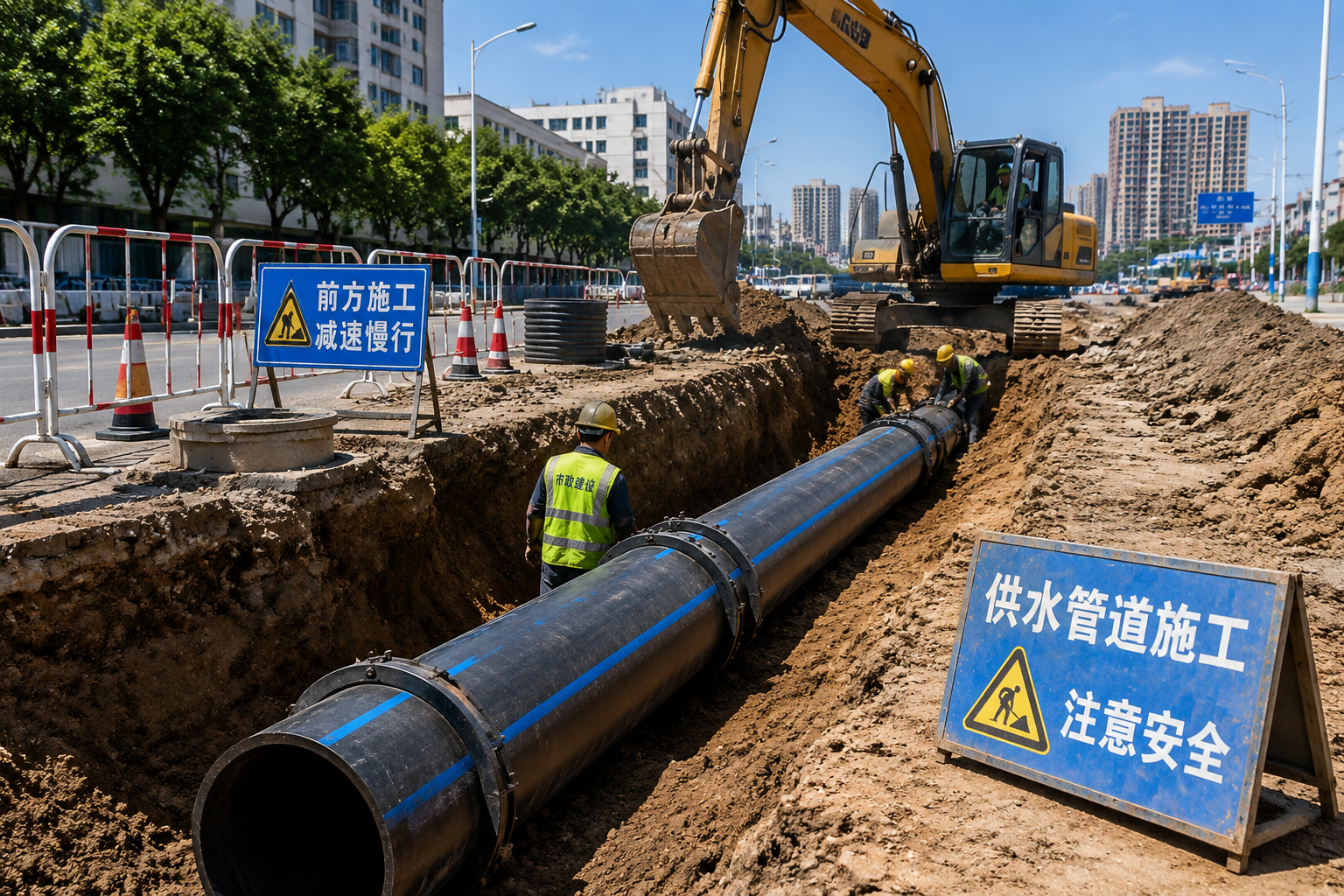

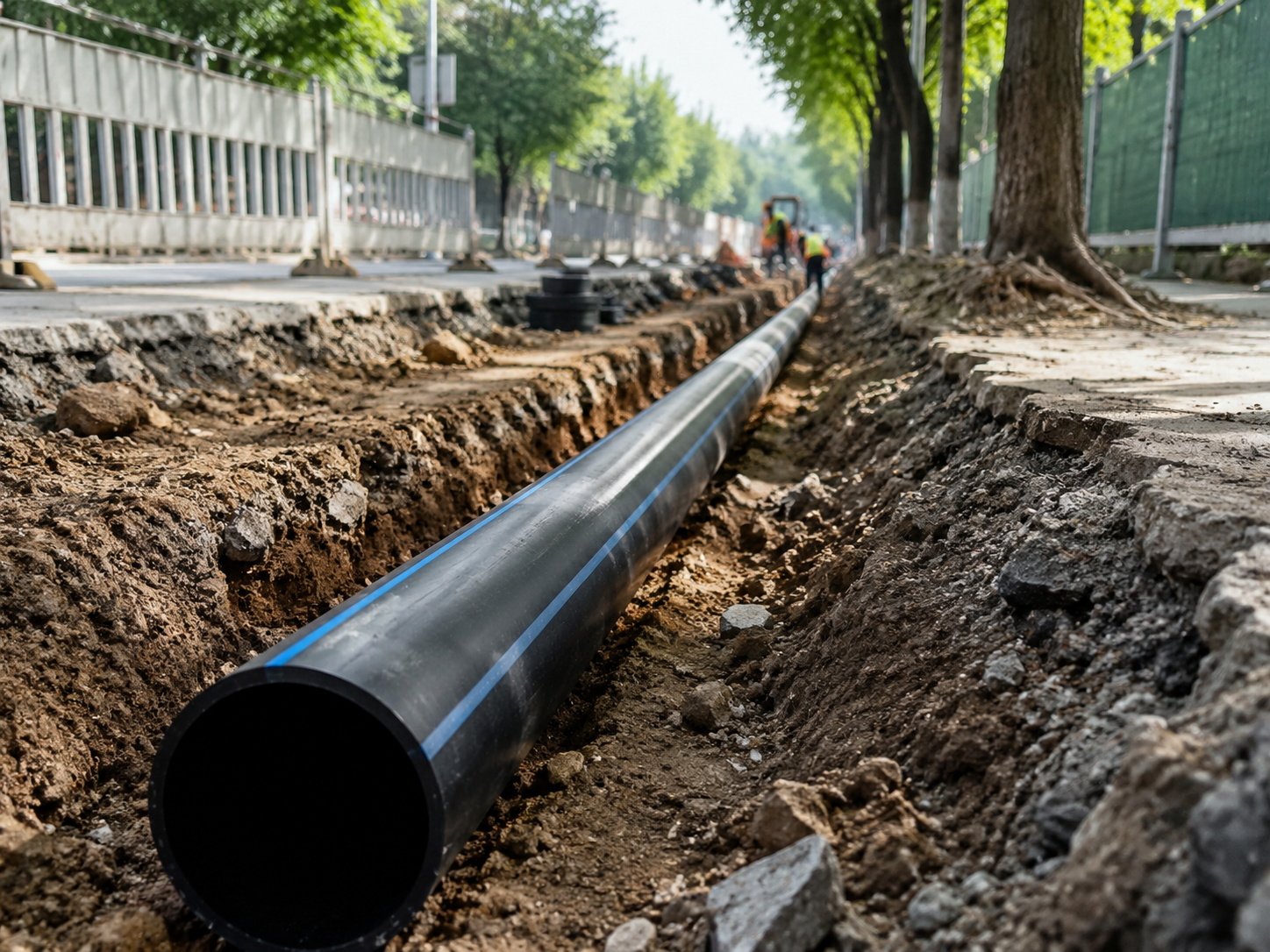

HDPE PE100 Pressure Pipe System — Flexible Solution for Critical
Water Networks.
Engineering Advantages:
High Crack Resistance
PE100 raw material possesses excellent:| Resistance to Slow Crack Growth (SCG) | Resistance to Rapid Crack Propagation (RCP) |
Leak-Free Thermal Fusion Jointing;
BSX HDPE piping utilizes:
|

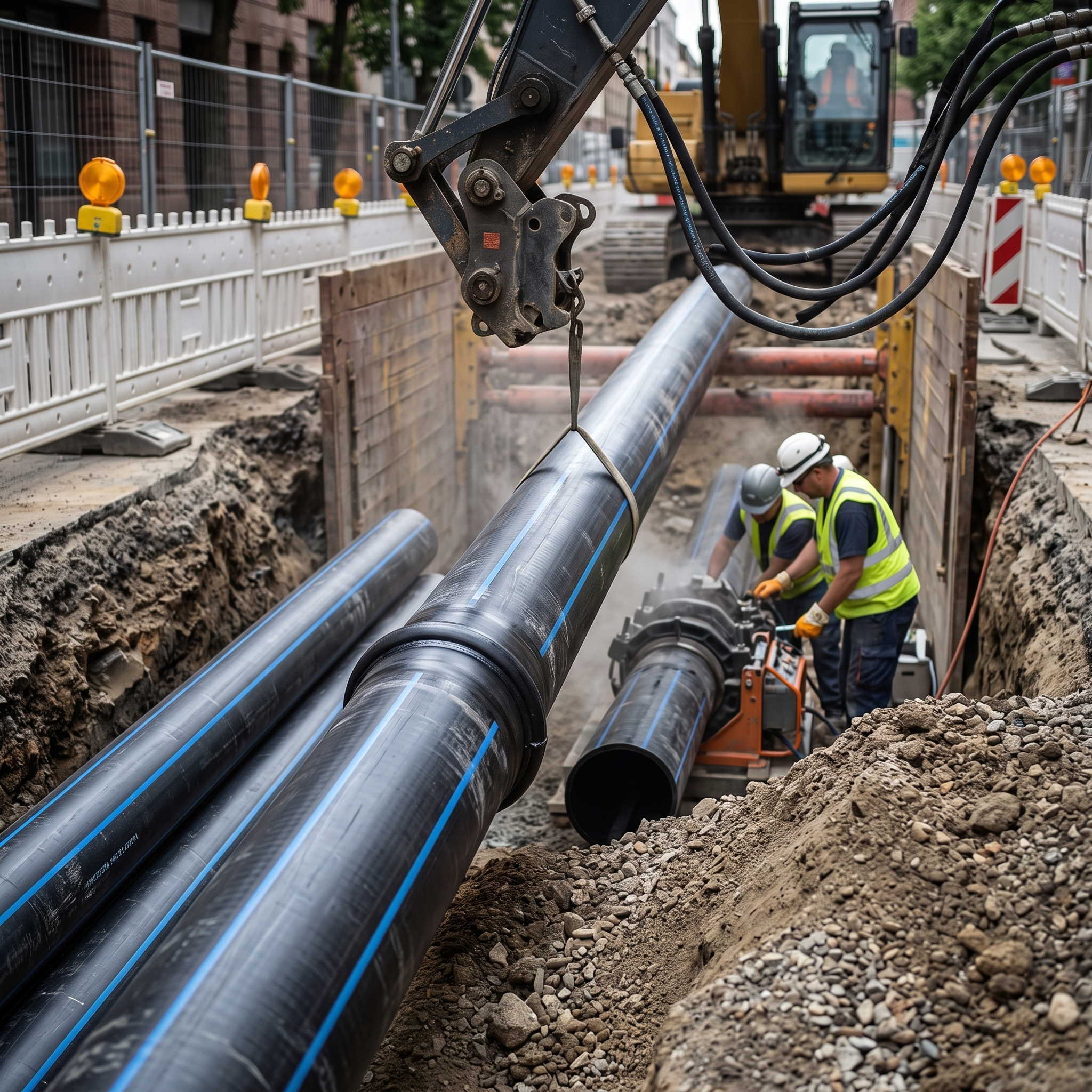

Butt fusion welding |

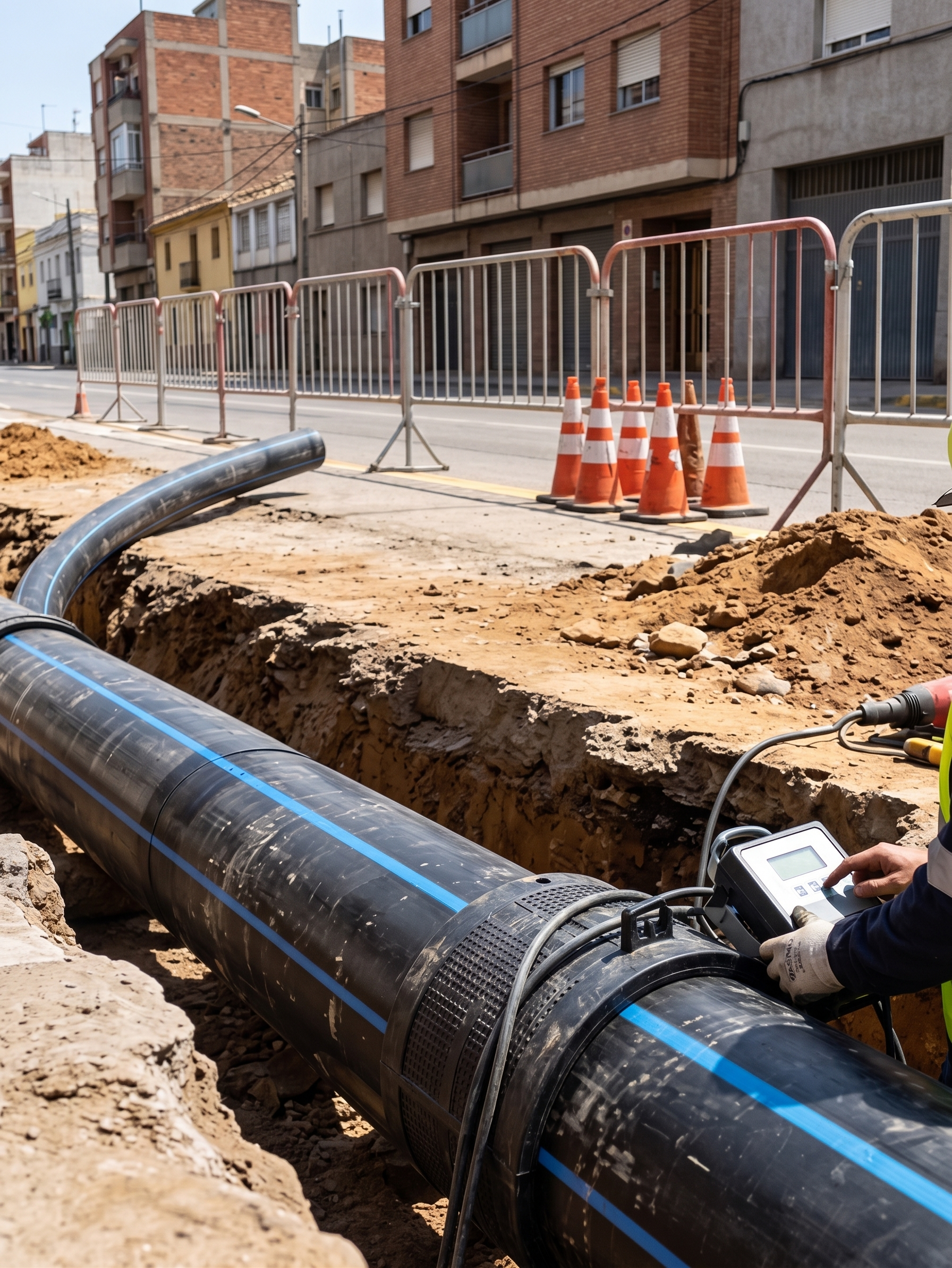

Electrofusion jointing |
Trenchless HDD Installation Capability.
The flexibility of HDPE PE100 makes it particularly suitable for:
|
River crossings |
Road under-crossings |
Urban underground retrofitting |
And through Horizontal Directional Drilling (HDD) technology, it reduces:
|
Excavation volume |
Traffic impact |
Environmental disturbance |
PVC-U Pressure Pipe System — Economical Solution for Municipal Distribution Networks
PVC-U pressure pipes are suitable for:
|
Urban branch water supply |
Water supply networks for small communities |
Regional water distribution systems |
Key advantages:
1.High Ring Stiffness
PVC-U offers high rigidity:
Strong resistance to external soil pressure
Maintains stable pipe roundness
Suitable for standard buried installations
2.Corrosion-Free Performance
PVC-U is unaffected by:
Soil corrosion
Electrochemical corrosion
Avoids the rusting issues common to metal piping.
3.Cost Optimized Infrastructure
For large scale municipal projects:
PVC-U meets pressure requirements while:
Reducing material costs
Simplifying installation processes
Improving project cost-efficiency
Technical Specifications & International Engineering Standards
BSX Pipe Water Supply Pipeline Systems are engineered according to internationally recognized standards.
Applicable Standards:
ISO 4427 — Polyethylene (PE) piping systems for water supply
ISO 1452 — PVC-U piping systems for water supply
ASTM standards for pressure piping applications
EN standards for municipal water infrastructure
Engineering Parameter Framework
|
Parameter |
HDPE PE100 |
PVC-U |
|
Material |
PE100 Polyethylene |
PVC-U |
|
Application |
Main Transmission / Distribution |
Municipal Distribution |
|
SDR Range |
SDR11 / SDR13.6 / SDR17 / SDR21 |
According to pressure class |
|
Pressure Rating |
PN6 – PN16 |
PN6 – PN16 |
|
Diameter Range |
Customized DN20–DN1600+ |
Customized according to project |
|
Jointing Method |
Butt Fusion / Electrofusion |
Solvent Cement / Rubber Ring |
|
Installation |
Open Trench / HDD |
Open Trench |
|
Service Life |
50+ Years |
50+ Years |
